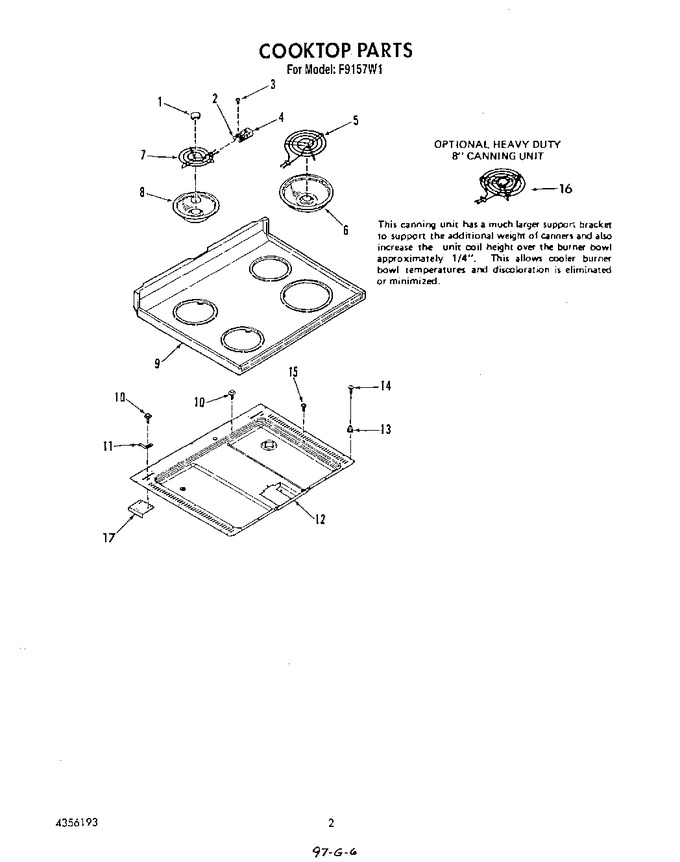

02 - Cooktop
03 - Control Panel , Lit/optional
04 - Oven
05 - Oven Door
06 - Door Lock
07 - Wire Harness , Lit/optional Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4332691 | Medallion (4 Req) |
|
- | |||||
| 2 | 4336966 | Clip, Term. Blk. (4 Req) |
|
- | |||||
| 3 | 4327985 | Screw, No.7-32 X 5/16 |
|
- | |||||
| 4 | 330031 | Block, Terminal-w/wires (4 Req) (Replaces: 4342636) |
|
Immediately | $ 17.93 | ||||
| 5 | WP660533 | Surface Element-8`` (Replaces: 4334586) |
|
Immediately | $ 40.21 | ||||
| 6 | W10196405RW | Bowl 8`` (Replaces: 4329225) |
|
Immediately | $ 19.64 | ||||
| 7 | WPY04100165 | Surface Element-6`` (Replaces: 4334590) |
|
Immediately | $ 56.92 | ||||
| 8 | WPW10196406 | Bowl, 6`` (Replaces: 4327709) |
|
Immediately | $ 12.05 | ||||
| 9 | 4336756 | Cooktop (almond) |
|
- | |||||
| 9 | 4336716 | Cooktop (white) |
|
- | |||||
| 10 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 11 | 4337119 | Hinge-main Cooktop (right) |
|
- | |||||
| 11 | 4337071 | Hinge-main Cooktop (left) |
|
- | |||||
| 12 | 4336909 | Bottom, Burner Box |
|
- | |||||
| 13 | 4337082 | Strike |
|
- | |||||
| 14 | 4335220 | Screw No.6-32x7/8 |
|
- | |||||
| 15 | 4332521 | Screw No.10-32x1/2 |
|
- | |||||
| 16 | 4335056 | Canning Element (optional) 8`` (208 Volt) |
|
- | |||||
| 16 | 4335055 | Canning Element (optional) 8`` (240 Volt) |
|
- | |||||
| 17 | 4337587 | Baffle, Burner Box |
|
- |
