02 - Cooktop

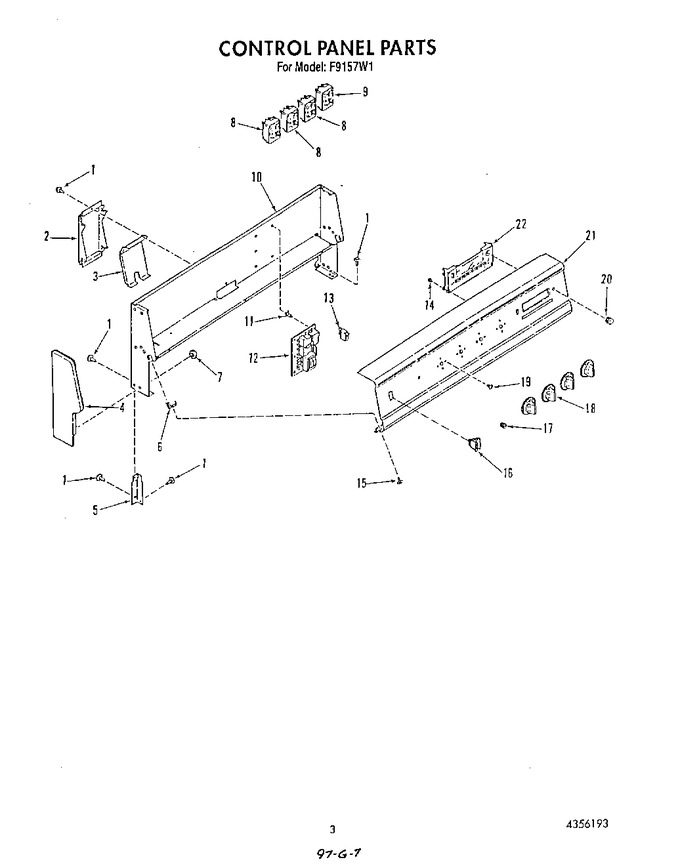

03 - Control Panel , Lit/optional
04 - Oven
05 - Oven Door
06 - Door Lock
07 - Wire Harness , Lit/optional Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 2 | 4337189 | Raceway, Wire |
|
- | |||||
| 3 | 4337190 | Cover, Raceway |
|
- | |||||
| 4 | 4337670 | End Cap (left) |
|
- | |||||
| 4 | 4337699 | End Cap (right) |
|
- | |||||
| 5 | 4337180 | Support, Backguard (right) |
|
- | |||||
| 5 | 4337181 | Support, Backguard (left) |
|
- | |||||
| 6 | 4338226 | Clip, Backguard |
|
- | |||||
| 7 | WP308499 | Nut, Pal (Replaces: 4337577) |
|
$ 6.57 | |||||
| 8 | W10900107 | Switch, Infinite. Left Front, Right Rear, Left Rear (Replaces: 4337355) |
|
Immediately | $ 51.87 | ||||
| 9 | W10900107 | Switch, Infinite Right Front (Replaces: 4337356) |
|
Immediately | $ 51.87 | ||||
| 10 | 4337138 | Frame, Backguard |
|
- | |||||
| 11 | 4337387 | Spacer |
|
- | |||||
| 12 | 4338118 | Relay Circuit Board |
|
- | |||||
| 13 | 4336633 | Indicator Light |
|
- | |||||
| 14 | 4323476 | Screw, No.6-32 X 5/16 |
|
- | |||||
| 15 | 4332521 | Screw No.10-32x1/2 |
|
- | |||||
| 16 | WP4314961 | Switch, Rocker (Replaces: 4337275) |
|
$ 84.56 | |||||
| 17 | WP9750343 | Lens, Ind. Light (Replaces: 4336632) |
|
Immediately | $ 5.40 | ||||
| 18 | 4338029 | Knob, Infinite |
|
- | |||||
| 19 | 4323479 | Screw No.8-32 X 3/16 |
|
- | |||||
| 20 | 4338513 | Control Knob, Clock/oven |
|
- | |||||
| 21 | 4338521 | Control Panel |
|
- | |||||
| 22 | 4354962 | Control, Clock/oven |
|
- |
