SELECT A DIAGRAM

02 - Control Panel, Lit/optional

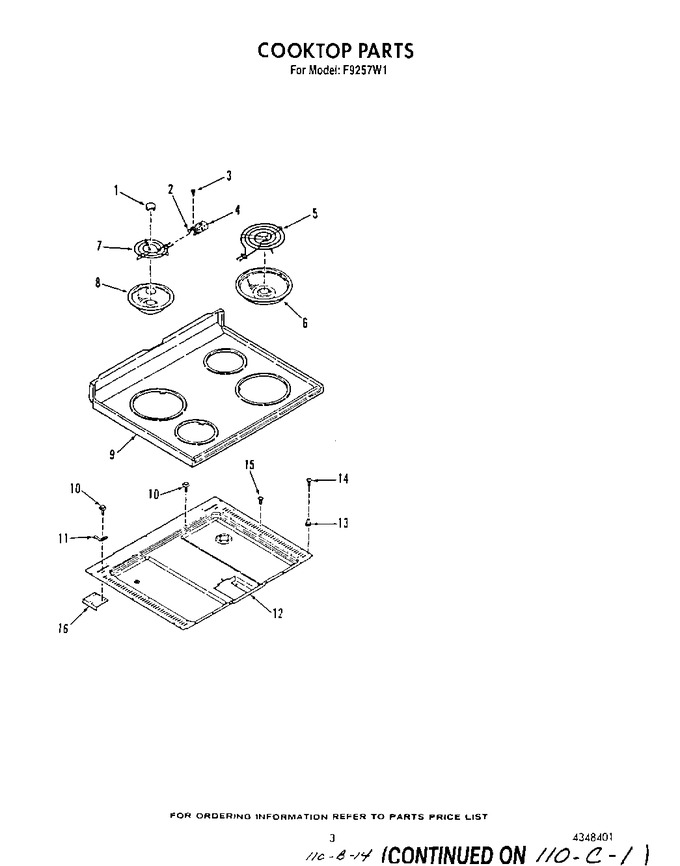

03 - Cooktop


04 - Oven


05 - Door Lock, Optional Griddle


06 - Oven Door, Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4332691		Medallion (4 Req)		Appelez-nous	-
2	WP4332752		Clip, Term. Blk. (4 Req)   (Replaces: 4332752)				$ 7.18
3	4338182		Screw, No.6-20 X 5/16		Appelez-nous	-
4	330031		Block, Terminal-w/wires (4 Req)   (Replaces: 4342636)			Immediately	$ 17.93
5	WP660533		Surface Element-8``   (Replaces: 4334586)			Immediately	$ 40.21
6	W10196405RW		Bowl 8``   (Replaces: 4329225)			Immediately	$ 19.64
7	WPY04100165		Surface Element-6``   (Replaces: 4334590)			Immediately	$ 56.92
8	WPW10196406		Bowl, 6``   (Replaces: 4327709)			Immediately	$ 12.05
9	4336759		Cooktop (almond)		Appelez-nous	-
9	4336717		Cooktop (white)		Appelez-nous	-
9	4336718		Cooktop (chrome)		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4337071		Hinge-main Cooktop (left)		Appelez-nous	-
11	4337119		Hinge-main Cooktop (right)		Appelez-nous	-
12	4336909		Bottom, Burner Box		Appelez-nous	-
13	4337082		Strike		Appelez-nous	-
14	4335220		Screw No.6-32x7/8		Appelez-nous	-
15	4337797		Screw, No.10-32 X 1/2		Appelez-nous	-
16	4337590		Support Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
