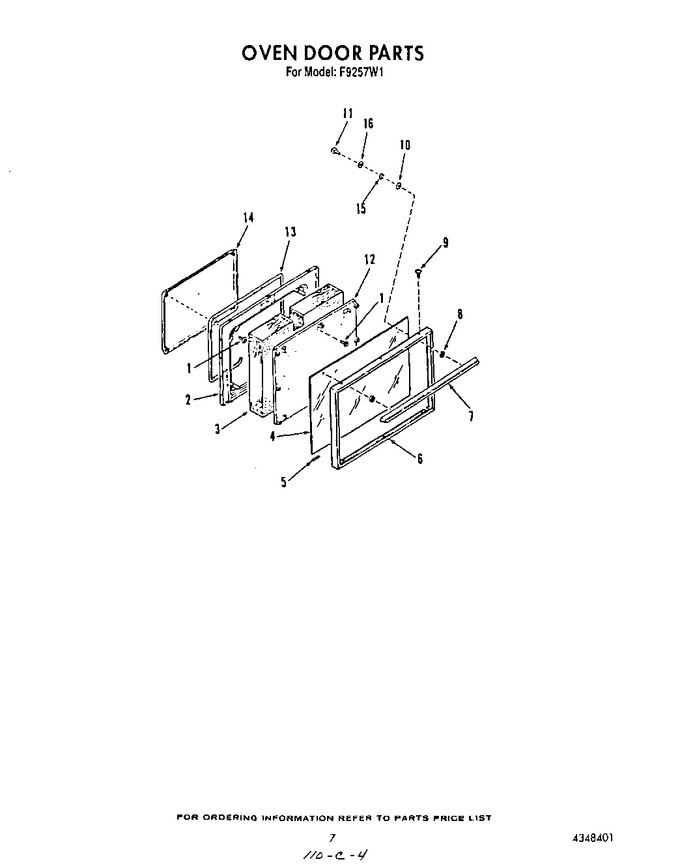

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, No.10-16 X 7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

2 4336608 Liner, Inner Door Appelez-nous -
3 4354952 Insulation Appelez-nous -
4 4336722 Glass, Outer Appelez-nous -
5 4324217 Cushion Appelez-nous -
6 4338148 Frame Appelez-nous -
7 4337344 Handle Appelez-nous -
8 4323997 Spacer, Handle Appelez-nous -
9 4336631 Screw Appelez-nous -
10 4336868 Washer, Fiber Appelez-nous -
11 WP999367 Screw, No.10-32 X 3/4   (Replaces: 4328242) Special Order $ 7.70

12 4334786 Retainer, Insulation Appelez-nous -
13 4342564 Seal, Door Gasket Appelez-nous -
14 4337956 Plug, Inner Door Appelez-nous -
15 4336869 Spacer, Glass Appelez-nous -
16 4323694 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
