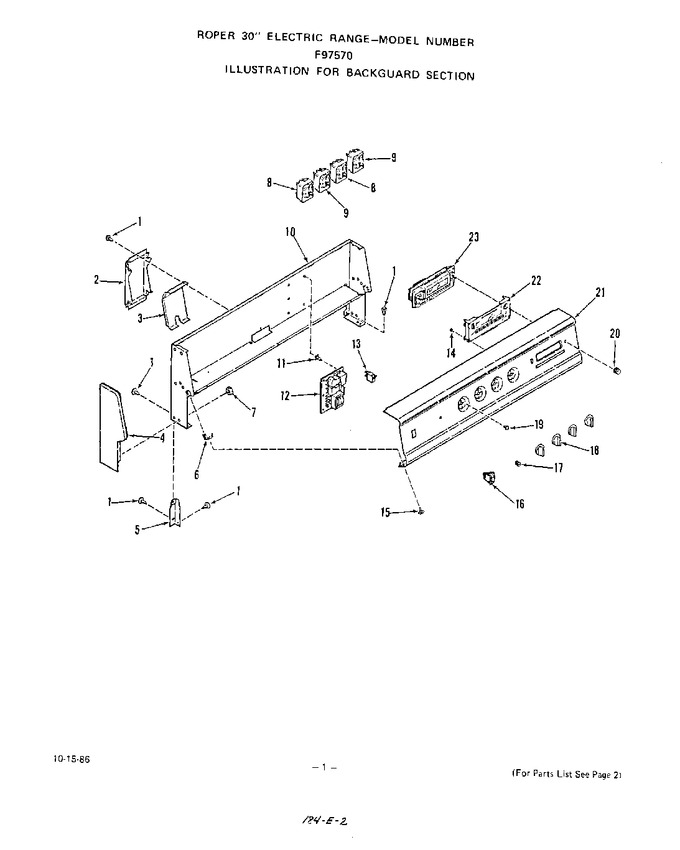

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	334363		Wire Raceway		Appelez-nous	-
3	334364		Raceway Cover		Appelez-nous	-
4	334161		Right		Appelez-nous	-
4	334162		Left		Appelez-nous	-
5	334337		Right		Appelez-nous	-
5	334338		Left		Appelez-nous	-
6	334375		Backguard Clip		Appelez-nous	-
7	335776		Pal Nut		Appelez-nous	-
8	5500-200		Infinite Switch (rt. Front Or Lt. Rear)   (Replaces: 334890)			Immediately	$ 60.94
9	5500-200		Infinite Switch (lt. Front Or Rt. Rear)   (Replaces: 334889)			Immediately	$ 60.94
10	334172		Backguard Body		Appelez-nous	-
11	334955		Circuit Board Spacer		Appelez-nous	-
12	335245		Circuit Board W/relay		Appelez-nous	-
13	331716		Indicator Light		Appelez-nous	-
14	78153		Screw 6-32x5/16``		Appelez-nous	-
15	316849		Screw-10-32x1/2``		Appelez-nous	-
16	334649		Switch-oven Light		Appelez-nous	-
17	331705		Lens-indicator Light		Appelez-nous	-
18	334562		Infinite Knob		Appelez-nous	-
19	78565		Screw 8-32x3/16``		Appelez-nous	-
20	334914		Clock/oven Control Knob		Appelez-nous	-
21	335402		Control Panel		Appelez-nous	-
22	334898		Clock/oven Control Lens		Appelez-nous	-
23	336678		Clock/oven Control		Appelez-nous	-
