02 - Lit/optional , Backguard

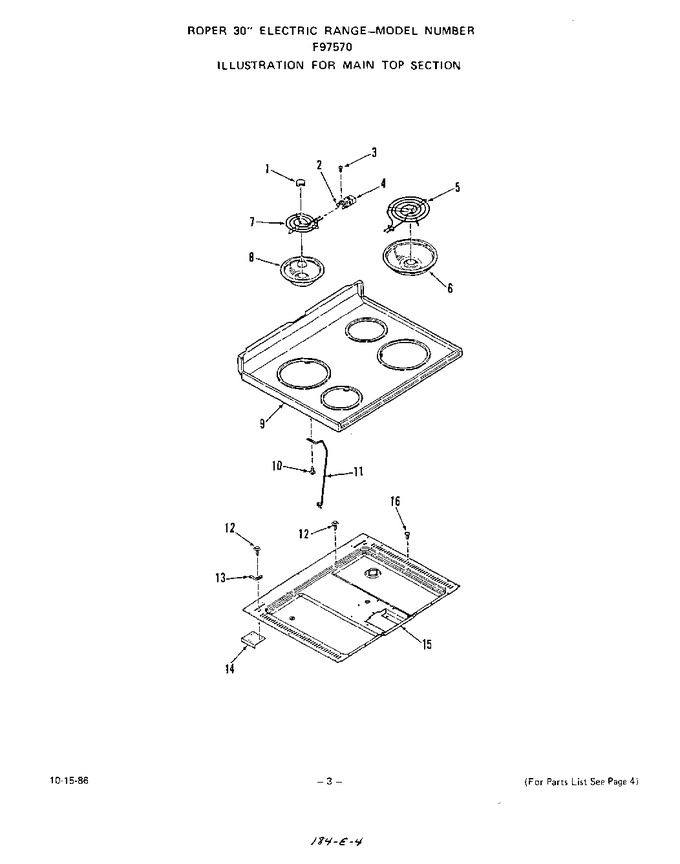

03 - Main Top
04 - Body
05 - Power Lock
06 - Oven Door
07 - Wire Harness And Components , Gridd
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion (4 Req) |
|
- | |||||
| 2 | 318872 | Terminal Block Clip (4 Req) |
|
- | |||||
| 3 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 4 | 330031 | Terminal Block W/wires (4 Req) (Replaces: 318960) |
|
Immediately | $ 19.92 | ||||
| 5 | PS26-4BK | 8`` Surface Element (Replaces: 325506) |
|
Immediately | $ 44.95 | ||||
| 6 | WPW10196405 | 8`` Burner Bowl (Replaces: 304969) |
|
Immediately | $ 17.29 | ||||
| 7 | PS15-4BK | 6`` Surface Element (Replaces: 325510) |
|
Immediately | $ 39.95 | ||||
| 8 | WPW10196406 | 6`` Burner Bowl (Replaces: 296481) |
|
Immediately | $ 13.80 | ||||
| 9 | 332251 | Almond |
|
- | |||||
| 9 | 332047 | White |
|
- | |||||
| 10 | 300000 | Screw 6-32 X 5/16`` |
|
- | |||||
| 11 | 332284 | Support Rod-main Top (2 Req) |
|
- | |||||
| 12 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 13 | 334089 | Right |
|
- | |||||
| 13 | 333859 | Left |
|
- | |||||
| 14 | 335823 | Reinforcement Plate |
|
- | |||||
| 15 | 333171 | Burner Box Bottom |
|
- | |||||
| 16 | 316849 | Screw-10-32x1/2`` |
|
- |
