SELECT A DIAGRAM

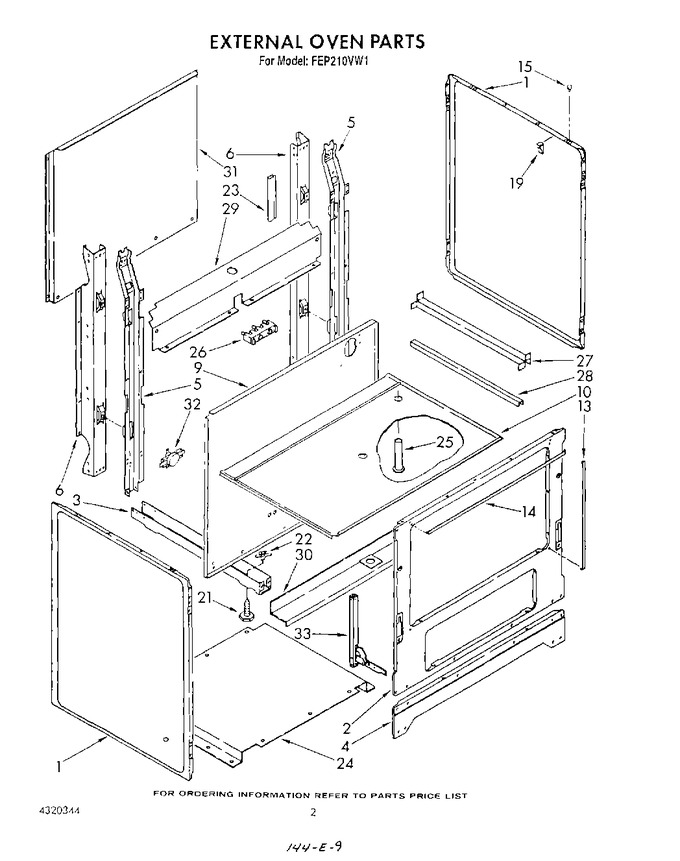

02 - External Oven , Literature And Optional


03 - Internal Oven


04 - Backguard


05 - Oven Door


06 - Cook Top And Manifold


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157130		Panel, Side (2) (almond)		Appelez-nous	-
1	WP308685		Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4157111)			Immediately	$ 7.87
1	4157000		Panel, Side (2) (white)		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
2	4315206		Frame, Front		Appelez-nous	-
3	4157005		Rail, Base (2)		Appelez-nous	-
4	4157945		Base, Front		Appelez-nous	-
4	4157122		Screw, 10-12 X 1/2 (4)		Appelez-nous	-
5	4157123		Screw, 10-32 X 1/2 (1)		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (12)   (Replaces: 4157111)			Immediately	$ 7.87
5	4157011		Support, Main (2)		Appelez-nous	-
6	4315382		Support, Rear (2)		Appelez-nous	-
6	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
6	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
9	4315529		Panel, Rear		Appelez-nous	-
9	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4157111)			Immediately	$ 7.87
10	4157925		Burner Box		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315471		Seal, Door (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
19	4157127		Clip, Wire (2)		Appelez-nous	-
21	4157161		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Nut (4)		Appelez-nous	-
23	4157132		Safe Edge		Appelez-nous	-
24	4157952		Panel, Bottom		Appelez-nous	-
25	4157953		Tube, Vent		Appelez-nous	-
26	WP8203546		Block, Terminal   (Replaces: 4157955)			Immediately	$ 30.13
27	4157964		Channel, Wire		Appelez-nous	-
28	4157965		Support, Channel		Appelez-nous	-
29	4157966		Cover, Wire		Appelez-nous	-
30	4157968		Support		Appelez-nous	-
31	4157969		Cover, Rear		Appelez-nous	-
32	4179130		Disc, Thermo		Appelez-nous	-
33	4315464		Hinge, Door		Appelez-nous	-
33	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
33	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
33	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	LIT4315532		Guide, Use & Care		Appelez-nous	-
	LIT786358		Guide, Cooking		Appelez-nous	-
	LIT4315533		Instuctions, Installation		Appelez-nous	-
	LIT4320344		List, Repair Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
