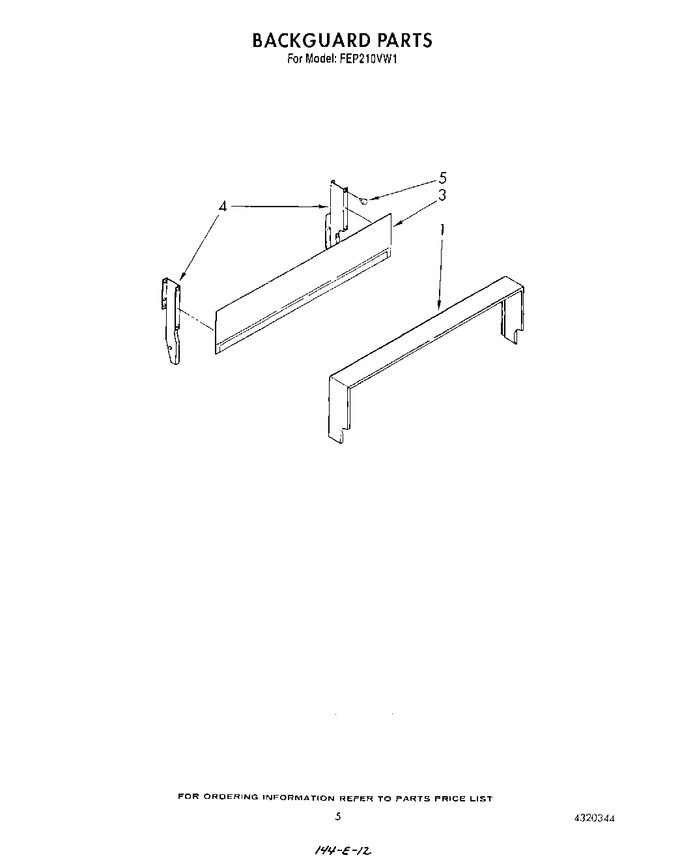

04 - Backguard
05 - Oven Door
06 - Cook Top And Manifold
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4315545 | Frame |
|
- | |||||
| 1 | 4157121 | Screw, 10-12 X 3/8 (6) |
|
- | |||||
| 3 | 4157854 | Back Guard Panel |
|
- | |||||
| 3 | 4315546 | White |
|
- | |||||
| 3 | 4315547 | Almond |
|
- | |||||
| 4 | 4157160 | Support, Backguard (right Hand) |
|
- | |||||
| 4 | 4157159 | Support, Backguard (left Hand) |
|
- | |||||
| 4 | 4157123 | Support, Backguard (screw, 10-32 X 1/2 (1)) |
|
- | |||||
| 5 | 4157128 | Bumper (4) |
|
- |
