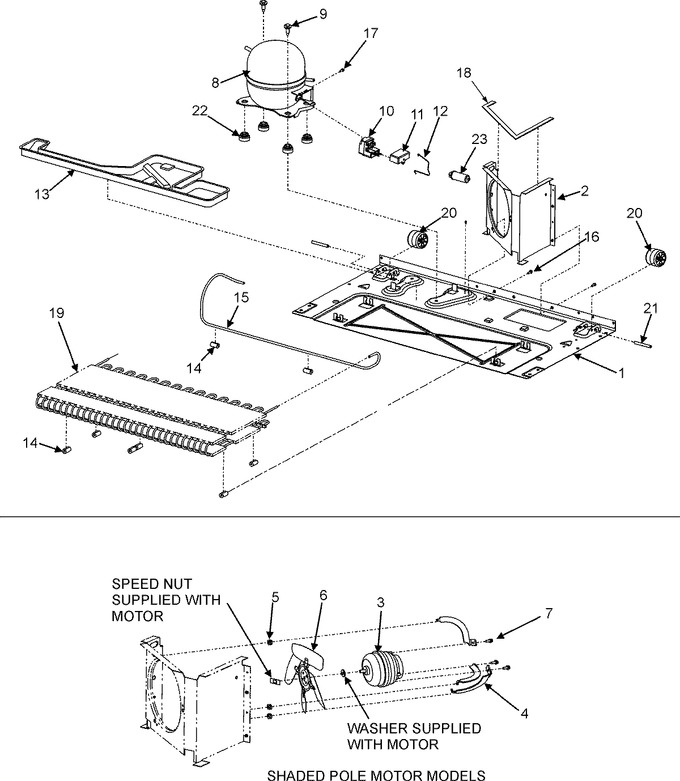

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003789		Basepan	10	Appelez-nous	-
2	67001090		Shroud, Condenser Fan	10	Appelez-nous	-
3	67002165		Motor, Condenser Fan	10	Appelez-nous	-
4	67003354		Bracket, Condenser Motor	10	Appelez-nous	-
5	61004743		Grommet, Bracket	10			$ 5.51
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	10			$ 133.00
7	M0223816		Screw, Tr	10			$ 5.27
8	W10309997		Compressor (tpg1410yxc)x-port   (Replaces: 67005028)	10			$ 583.93
9	12846902		Screw, Shoulder   (Replaces: 67003790)	10			$ 13.64
10	W10848274		Overload/relay   (Replaces: 67004815)	10			$ 185.85
11	WP2201147		Capacitor   (Replaces: 67002815)	10			$ 135.42
12	67003179		Strap, Bale	10	Appelez-nous	-
13	67004713		Pan, Drain	10	Appelez-nous	-
14	67005680		Grommet, Condenser   (Replaces: 12578601)	10			$ 22.10
15	67004203		Tube, Discharge	10	Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
17	12992301		Screw, Tf   (Replaces: M0231604)	10			$ 7.32
18	WP854334		Seal   (Replaces: 61003210)	10			$ 13.94
19	67004145		Condenser	10	Appelez-nous	-
20	WP67005149		Roller   (Replaces: 67001094)	10		Immediately	$ 23.12
21	67006434		Axle, Roller   (Replaces: 67001095)	10		Immediately	$ 7.90
22	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.55
23	67005062		Filter, Line	10	Appelez-nous	-
24	67005069		Harness, Mc	10	Appelez-nous	-
