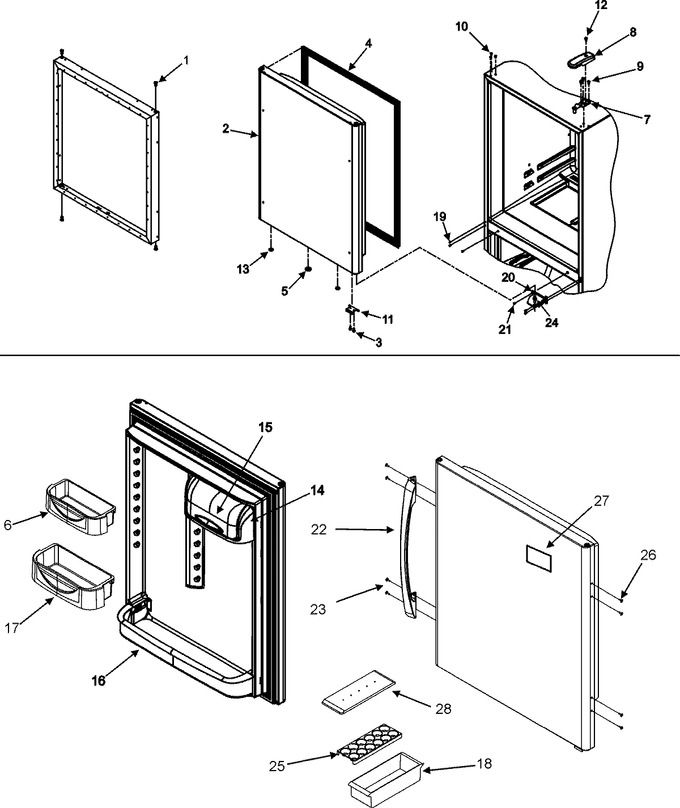

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) (Replaces: 67003369) | 10 |
|
$ 21.05 | ||||
| 2 | 67005070 | Door Assy., Ref. Foam (blk) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.76 | |||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) | 10 |
|
$ 345.10 | ||||
| 5 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 6 | WP67004041 | Bucket, Ref Dr (sm) (Replaces: 67004041) | 10 |
|
$ 84.77 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 47.34 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.38 | ||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.76 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.05 | |||
| 12 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.68 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 78.73 | |||
| 16 | 67002505 | Retainer, Door | 10 |
|
- | ||||
| 17 | 67004040 | Bucket, Ref Dr (med) | 10 |
|
$ 91.42 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.88 | |||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 152.73 | ||||
| 21 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.02 | ||||
| 22 | 67004652 | Handle Assy., Ref Door (blk) | 10 |
|
- | ||||
| 23 | 67006806 | Screw, Hi Torque (blk) (Replaces: 67004709) | 10 |
|
$ 13.35 | ||||
| 24 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) | 10 |
|
$ 8.27 | ||||
| 24 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) | 10 |
|
Immediately | $ 24.43 | |||
| 25 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 26 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) | 10 |
|
Immediately | $ 7.76 | |||
| 27 | 61002504 | Bezel, Nameplate (blk) | 10 |
|
- | ||||
| 28 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 |
