01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

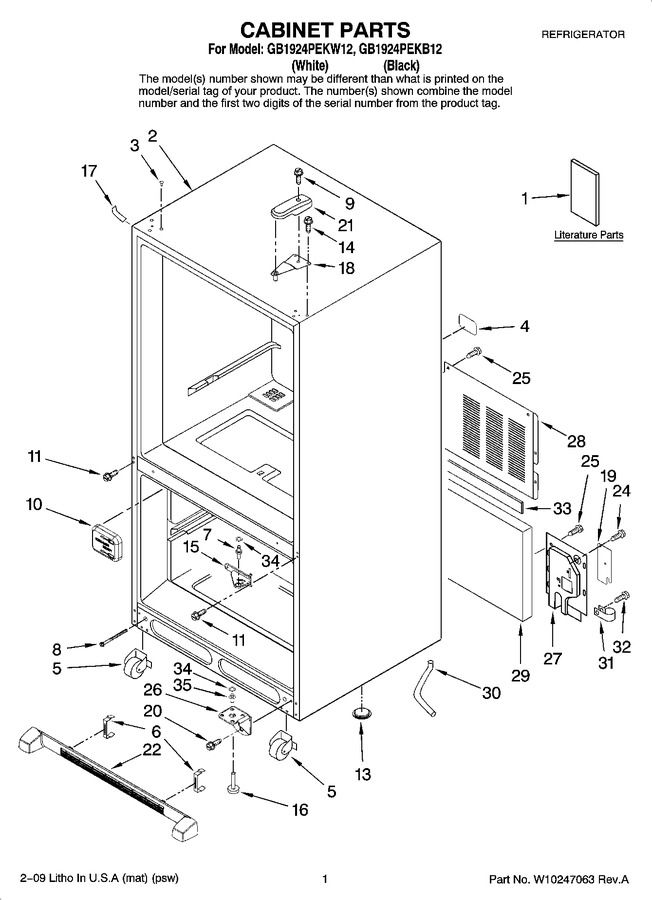

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189		Owners Manual		Appelez-nous	-
1	12827958		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 7.76
3	M0310343		Plug, Button (3) (white)				$ 10.67
4	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.06
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.27
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.03
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center White   (Replaces: 12607103WD)				$ 66.47
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
16	W11177593		Foot Brake (2)   (Replaces: 67003868)				$ 11.60
17	12587703W		Cover, Corner White				$ 21.81
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
19	12479902		Plate, Cover		Appelez-nous	-
20	67006564		Screw (8)			Immediately	$ 7.69
21	67001014		Cover Hinge (white)				$ 21.28
21	67001012		Cover Hinge (black)				$ 47.34
22	67003849		Grille Assembly (includes Clips) (white)				$ 51.91
22	67003843		Grille Assembly (includes Clips) (black)				$ 51.18
24	WP489128		Screw   (Replaces: 67006662)				$ 10.88
25	67006425		Screw (9)			Immediately	$ 6.95
26	67001068		Hinge, Bottom (black)		Appelez-nous	-
26	67001069		Hinge, Bottom (white)		Appelez-nous	-
27	W10132512		Cover, Water Valve		Appelez-nous	-
28	67006102		Cover, Unit		Appelez-nous	-
29	67003796		Insulation, Sound				$ 19.27
30	67001066		Tube, Drain				$ 55.82
31	67001067		Clip, Drain Tube				$ 9.20
32	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
33	B5759649		Gasket		Appelez-nous	-
34	WPM0274062		Shim, Non Metal (black)   (Replaces: M0274062)			Immediately	$ 24.43
34	WPM0274057		Shim, Non Metal (white)   (Replaces: M0274057)			Immediately	$ 8.00
35	67007018		Pin Hinge Bottom			Immediately	$ 8.21

    View Diagram in Separate Window       Print Part List
