SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

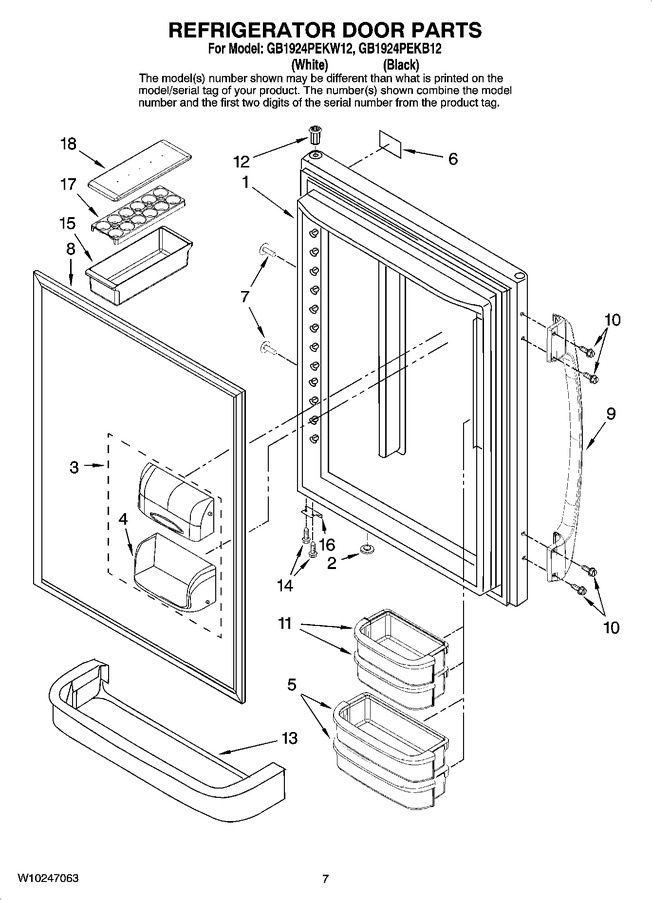

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658529BQ		Refrigerator Door (w/ Insulation) (black)				$ 443.92
1	12658529WQ		Refrigerator Door (w/ Insulation) (white)				$ 439.53
2	8208212		Plug, Vent (white)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 10.68
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	67004040		Bucket (2) (medium)				$ 91.42
6	66981-5		Nameplate		Appelez-nous	-
7	12991101		Screw, Handle   (Replaces: 67006408)				$ 12.83
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10130148)			Immediately	$ 347.85
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: 12683815B)				$ 345.10
9	67006120		Handle, Door (black)		Appelez-nous	-
9	WP12781004W		Handle, Door (white)   (Replaces: 67006119)				$ 183.57
10	67006668		Screw				$ 12.83
11	WP67004041		Door Bucket (2) (small)   (Replaces: 67004041)				$ 84.77
12	67004978		Bushing (black)				$ 21.05
12	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.81
13	67002505		Retainer, Door		Appelez-nous	-
14	WP98165		Screw   (Replaces: 67006287)				$ 8.00
15	10423131		Bin, Utility				$ 31.13
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.05
16	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 65.99
17	10436506		Tray, Egg				$ 8.28
18	10436404		Lid, Utility				$ 60.85

    View Diagram in Separate Window       Print Part List
