02 - Internal Oven


03 - External Oven


04 - Cooktop


05 - Control Panel, Lit/optional


06 - Door

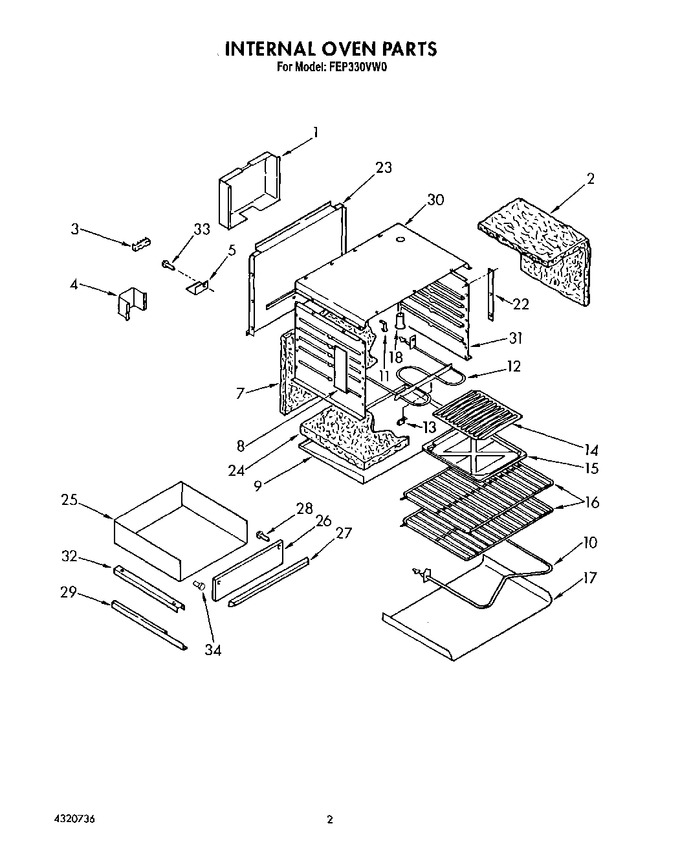

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4314943		Wire Shield		Appelez-nous	-
2	4320508		Insulation		Appelez-nous	-
3	WP8203546		Block-juction   (Replaces: 4157955)			Immediately	$ 27.12
4	4320496		Shield, Wire		Appelez-nous	-
5	4320523		Mounting Plate		Appelez-nous	-
7	WPW10208653		Insulation-back   (Replaces: 4157664)			Immediately	$ 54.98
8	4157325		Retainer Side		Appelez-nous	-
9	4315490		Retainer Lower		Appelez-nous	-
10	WP4314958		Element, Bake   (Replaces: 4314958)				$ 128.67
11	98005642		Clip   (Replaces: 4157329)			Immediately	$ 78.37
12	4157977		Element, Broiler		Appelez-nous	-
13	4157967		Support, Element		Appelez-nous	-
14	4315094		Grid, Broil Pan		Appelez-nous	-
15	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 54.64
16	4315754		Rack, Oven (2)		Appelez-nous	-
17	4320773		Bottom, Oven		Appelez-nous	-
18	4320543		Tube, Vent		Appelez-nous	-
22	4157328		Support, Oven Side (2)		Appelez-nous	-
23	4320526		Backliner, Oven		Appelez-nous	-
24	WPW10208653		Insulation, Bottom   (Replaces: 4157664)			Immediately	$ 54.98
25	4315499		Drawer, Storage		Appelez-nous	-
26	4320527		Drawer, Front (white)		Appelez-nous	-
26	4320528		Drawer, Front (almond)		Appelez-nous	-
27	4157208		Handle		Appelez-nous	-
28	4320579		Screw, Handle (2)		Appelez-nous	-
29	4320466		Track, Lower Assy. (right Side)		Appelez-nous	-
29	4320465		Track, Lower Assy. (left Side)		Appelez-nous	-
30	4315043		Oven, Top		Appelez-nous	-
31	4315753		Oven, Side (2)		Appelez-nous	-
32	4364023		Track, Upper Assy. (left Side)		Appelez-nous	-
32	4364024		Track, Upper Assy. (right Side)				$ 74.85
33	WP308685		Screw   (Replaces: 4315391)			Immediately	$ 7.08
34	4320477		Bumper (2)		Appelez-nous	-
