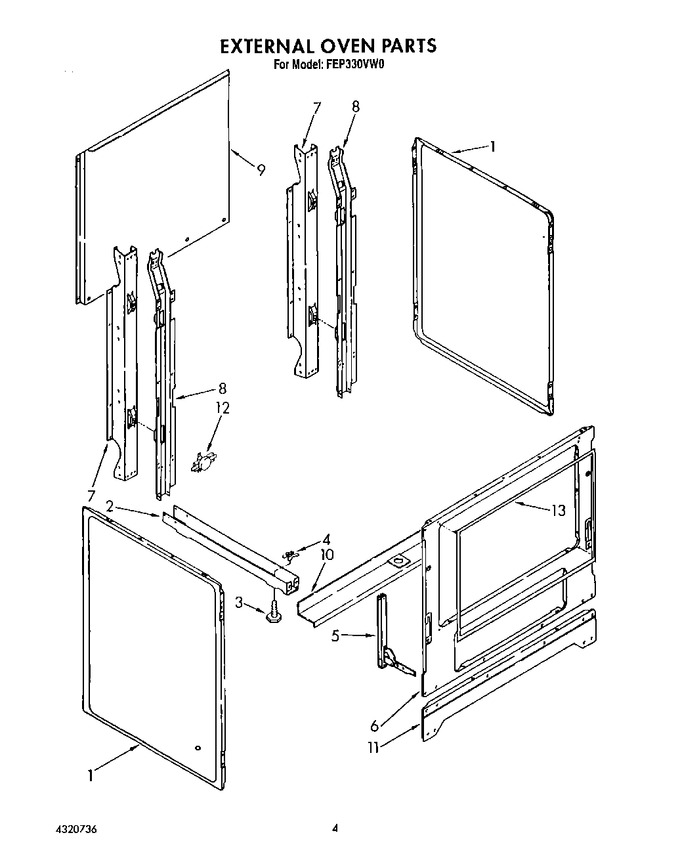

03 - External Oven


04 - Cooktop


05 - Control Panel, Lit/optional


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320373		Body Side (almond)		Appelez-nous	-
1	4157000		Body Side (white)		Appelez-nous	-
2	4320525		Base Rail		Appelez-nous	-
3	4157161		Leg Leveler		Appelez-nous	-
4	4157332		Nut		Appelez-nous	-
5	4320499		Hinge		Appelez-nous	-
6	4320497		Main Front		Appelez-nous	-
7	4315382		Support		Appelez-nous	-
8	4157011		Support, Main		Appelez-nous	-
9	4315493		Main Back		Appelez-nous	-
10	4315213		Support, Oven		Appelez-nous	-
11	4157006		Panel, Base		Appelez-nous	-
12	4179130		Disc, Thermo		Appelez-nous	-
13	4320463		Seal		Appelez-nous	-
