Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658530WQ Refrigerator Door (w/ Insulation) (white) Appelez-nous -
2 8208212 Plug, Vent (white) Appelez-nous -
3 WP12744905 Door, Compartment   (Replaces: 67003819) Special Order $ 113.99

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67004040 Bucket (4) (medium) Special Order $ 95.99

6 66981-5 Nameplate Appelez-nous -
7 12991101 Screw, Handle   (Replaces: 67006408) Special Order $ 13.47

8 W10443315 Gasket, Door Magnetic (white)   (Replaces: W10130894) Special Order $ 193.98

9 WP12781004W Handle, Door (white)   (Replaces: 67006119) Special Order $ 183.57

10 67006668 Screw Special Order $ 12.83

12 WP67004977 Bushing (white)   (Replaces: 67004977) Special Order $ 8.20

13 67001748 Retainer, Door Appelez-nous -
14 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

15 10423131 Bin, Utility Special Order $ 31.13

16 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

17 10436506 Tray, Egg Special Order $ 8.28

18 10436404 Lid, Utility Special Order $ 60.85


    View Diagram in Separate Window     Print Icon   Print Part List

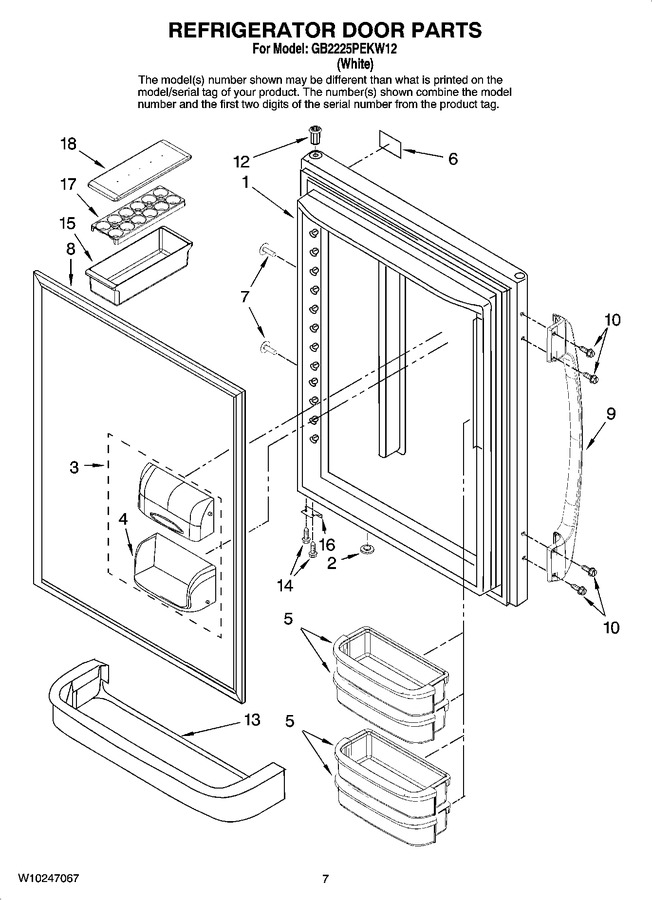

Diagram for GB2225PEKW12
