Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10671238 Rail, Center Crisper   (Replaces: 67001057) In-Stock Immediately $ 118.46

2 67004420 Trim, Crisper Appelez-nous -
3 WP67005864 Slide, Humidity   (Replaces: 67005864) In-Stock Immediately $ 8.20

4 67006230 Basket, Freezer (upper) Special Order $ 64.98

5 12754804 Basket, Freezer (lower) Special Order $ 97.34

6 W10656985 Trim, Pantry   (Replaces: 67001913) Special Order $ 137.68

7 W10709795 Screw (2)   (Replaces: 67006360) Special Order $ 13.79

9 WPW10328329 Pan, Pantry   (Replaces: 67005893) Special Order $ 162.16

10 67004127 Divider, Basket (upper) Special Order $ 10.10

11 67006425 Screw   (Replaces: 67006400) In-Stock Immediately $ 7.30

12 67003703 Shelf, Sta (4) Appelez-nous -
13 WP67001716 Hook, Ladder   (Replaces: 67001716) In-Stock Immediately $ 11.14

14 WP67001719 Track, Deli   (Replaces: 67001719) In-Stock Immediately $ 8.99

15 67006608 Screw Appelez-nous -
16 WP67002633 Pan, Crisper   (Replaces: 67002633) In-Stock Immediately $ 149.12

17 WP12227303WD Brace, Crisper (2)   (Replaces: 67001059) Special Order $ 111.25

18 67002657 Frame, Crisper (2) Appelez-nous -
19 WP67006878 Glass, Crisper   (Replaces: 67006878) In-Stock Immediately $ 185.19

20 67001073 Ladder, Center Special Order $ 56.89

21 67001317 Ladder, Side Special Order $ 39.13

22 WP67001721 Support, Lh   (Replaces: 67001721) In-Stock Immediately $ 8.70

23 WP67001722 Support, Rh   (Replaces: 67001722) In-Stock Immediately $ 8.93

25 67002002 Slide,pantry In-Stock Immediately $ 16.04

26 67002003 Bar, Control Special Order $ 47.06

27 WP12531601 Tunnel,pantry   (Replaces: 67002004) Special Order $ 11.04

28 67002005 Gasket, Pantry Appelez-nous -
29 67001923 Divider, Pantry Special Order $ 21.04

30 WP841180A Tray, Ice Cube   (Replaces: 67001747) In-Stock Immediately $ 47.84

31 12646501 Rack, Ice Appelez-nous -
32 10972101 Spacer, Rack Special Order $ 7.82

33 WP67006908 Screw (2)   (Replaces: 67006908) In-Stock Immediately $ 8.78


    View Diagram in Separate Window     Print Icon   Print Part List

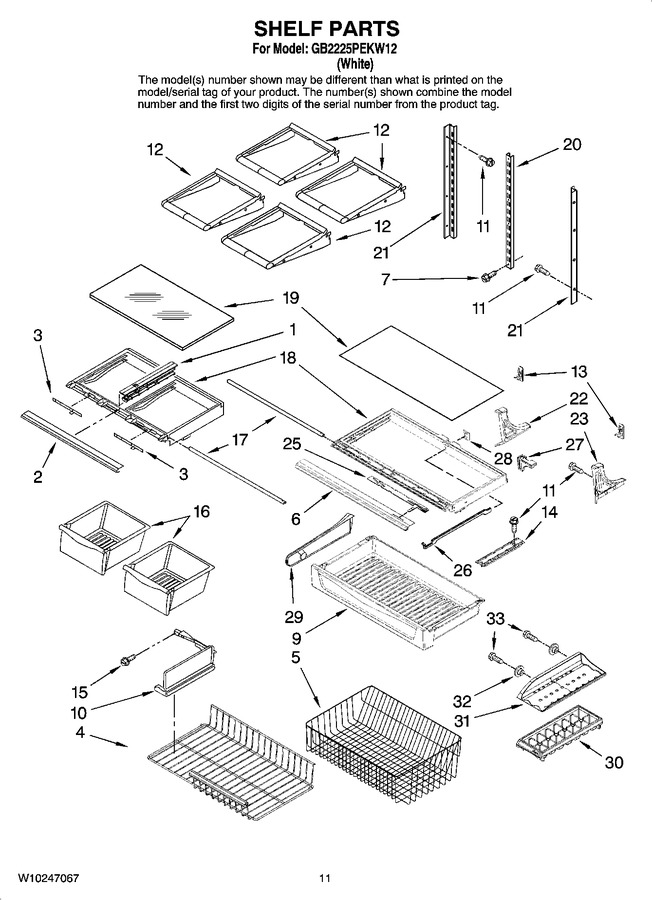

Diagram for GB2225PEKW12
