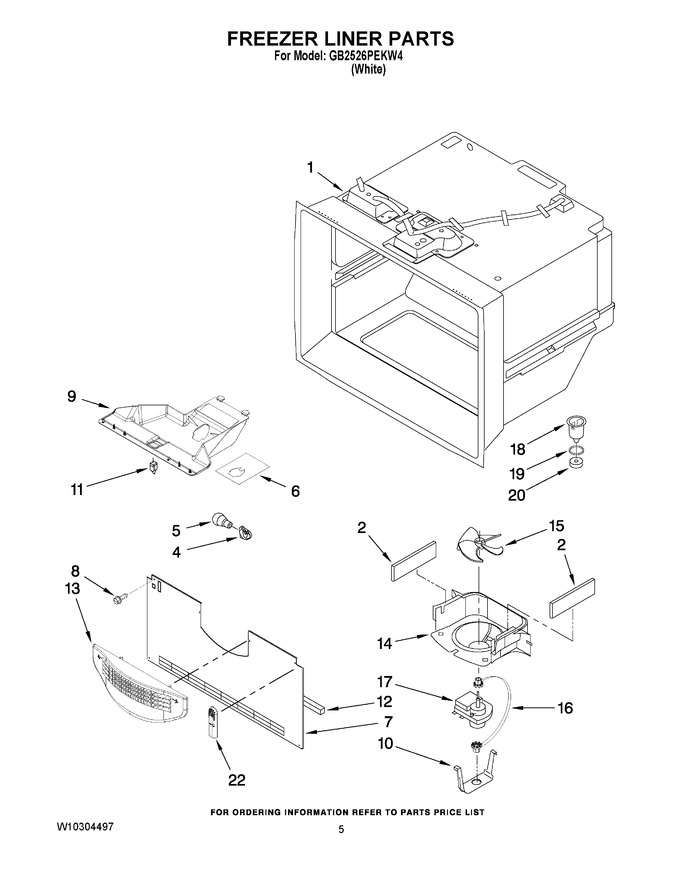

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (2) (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 4 | W11447232 | Socket, Light (Replaces: W10134764V) |
|
Immediately | $ 13.87 | ||||
| 5 | WP67002552 | Bulb, Light (Replaces: A0282808V) |
|
Immediately | $ 12.34 | ||||
| 6 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 23.29 | |||||
| 7 | W10308418 | Cover, Evaporator (Replaces: 12226114) |
|
- | |||||
| 8 | 67006425 | Screw (7) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 9 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 134.40 | |||||
| 10 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 11 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 12 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 13.03 | |||||
| 13 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 14 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 15 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 16 | W10121318 | Grommet (2) |
|
$ 50.80 | |||||
| 17 | WP67005023 | Motor, Evaporator (Replaces: 10449516) |
|
$ 327.98 | |||||
| 18 | W10815413 | Funnel, Drain (incl. No. 19 & 20) (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 20 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 22 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 |
