SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Freezer Liner Parts
03 - Freezer Liner Parts

Diagram for 04 - Refrigerator Door Parts
04 - Refrigerator Door Parts

Diagram for 05 - Freezer Door Parts
05 - Freezer Door Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Unit Parts
07 - Unit Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10326469 Rail, Center Crisper   (Replaces: 12796401) In-Stock Immediately $ 33.37

2 W10231344 Trim, Crisper Special Order $ 58.15

3 WP67005864 Slide, Humidity   (Replaces: 12530805SP) In-Stock Immediately $ 8.20

4 WPW10348246 Basket, Freezer(upper)   (Replaces: W10209706) Special Order $ 274.97

5 W10150039 Basket, Freezer (lower) Special Order $ 128.38

6 W10231336 Trim, Pantry Appelez-nous -
7 W10709795 Screw (2)   (Replaces: 12990515) Special Order $ 13.79

8 WP13062602 Support,crisper(2)   (Replaces: 13062602) Special Order $ 84.87

9 12645021 Pan, Pantry Appelez-nous -
10 W10241046 Divider, Basket (upper) In-Stock Immediately $ 29.19

11 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 7.30

12 12654610 Shelf, Glide Appelez-nous -
13 W10847995 Divider, Basket (lower)   (Replaces: W10146440) Special Order $ 92.48

14 WP67001719 Track-deli   (Replaces: 12531901) In-Stock Immediately $ 8.99

15 W10171558 Divider, Basket (upper) Special Order $ 42.49

16 12724126 Pan, Crisper Appelez-nous -
17 WP12642303WD Brace, Crisper (2)   (Replaces: 12642303WD) Special Order $ 112.26

18 WP67003854 Frame, Crisper (2)   (Replaces: 12796301SP) In-Stock Immediately $ 227.55

19 WP67006704 Glass, Crisper   (Replaces: 12204824) Special Order $ 212.77

20 W10273463 Ladder, Center Special Order $ 29.61

21 W10251969 Ladder, Side Special Order $ 31.44

25 12531502 Slide,pantry Appelez-nous -
26 12531402 Bar, Control Appelez-nous -
27 WP12531601 Tunnel, Pantry   (Replaces: 12531601) Special Order $ 11.04

28 12531701 Gasket, Pantry Appelez-nous -
29 12707602 Divider, Pantry Appelez-nous -
30 WP841180A Tray, Ice Cube   (Replaces: D7725402S) In-Stock Immediately $ 47.84

31 12646501 Rack, Ice Appelez-nous -
32 10972101 Spacer, Rack Special Order $ 7.82

33 WP67006908 Screw (2)   (Replaces: 12991001) In-Stock Immediately $ 8.78


    View Diagram in Separate Window     Print Icon   Print Part List

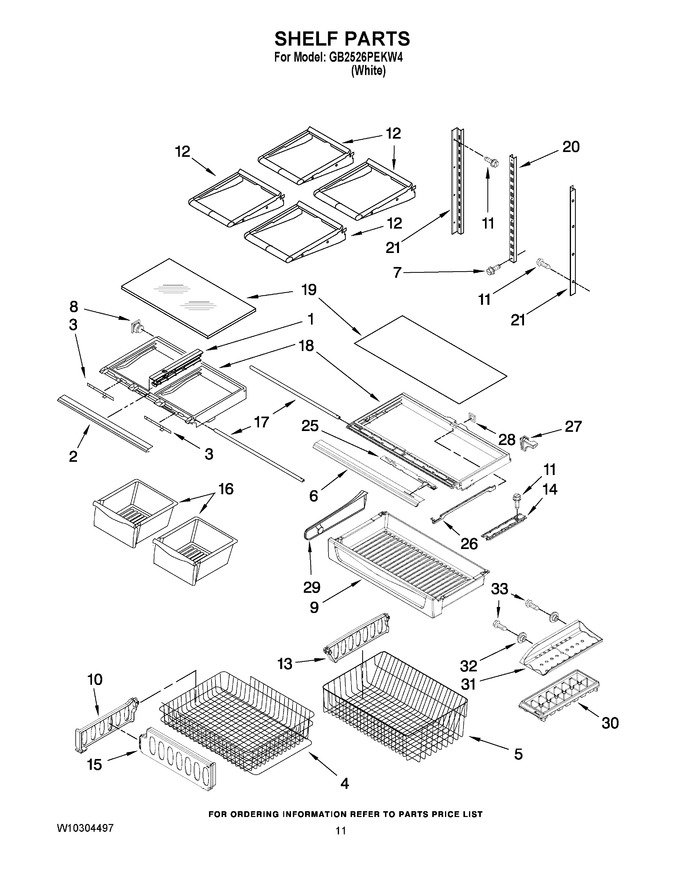

Diagram for GB2526PEKW4
