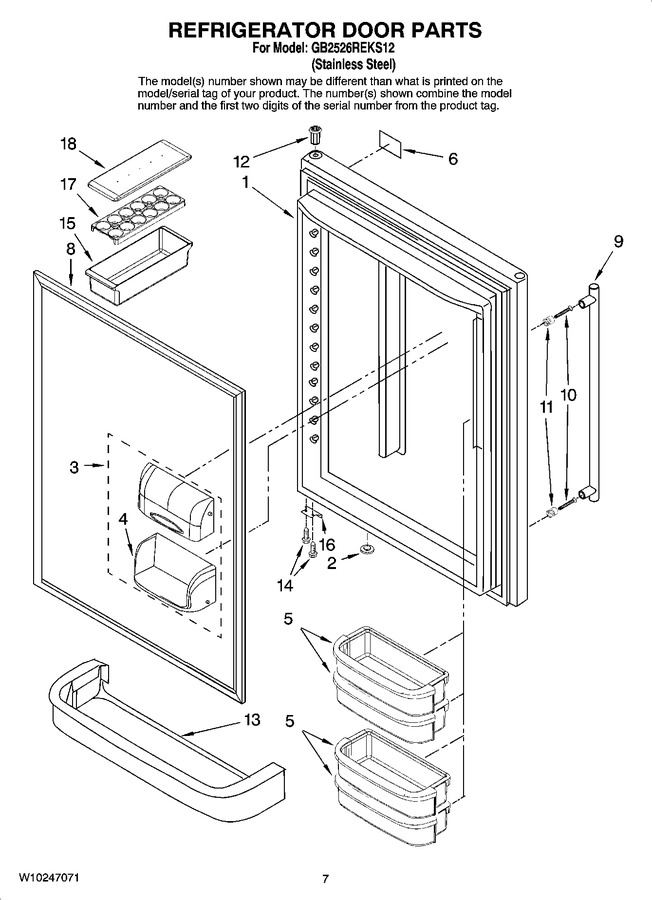

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023832SQ		Refrigerator Door (w/ Insulation) (stainless Steel)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67004530		Bucket, Lrg (2)		Appelez-nous	-
5	67004040		Bucket, Med (2)				$ 95.99
6	61002504		Nameplate		Appelez-nous	-
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	WP12850910		Handle, Door (stainless)   (Replaces: 12850910)				$ 289.68
10	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 10.28
11	67006109		Mount, Handle		Appelez-nous	-
12	67004978		Bushing (black)				$ 22.10
13	67003027		Retainer, Door		Appelez-nous	-
14	WP98165		Screw   (Replaces: 67006287)				$ 8.57
15	10423131		Bin, Utility				$ 31.13
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
17	10436506		Tray, Egg				$ 8.28
18	10436404		Lid, Utility				$ 60.85
