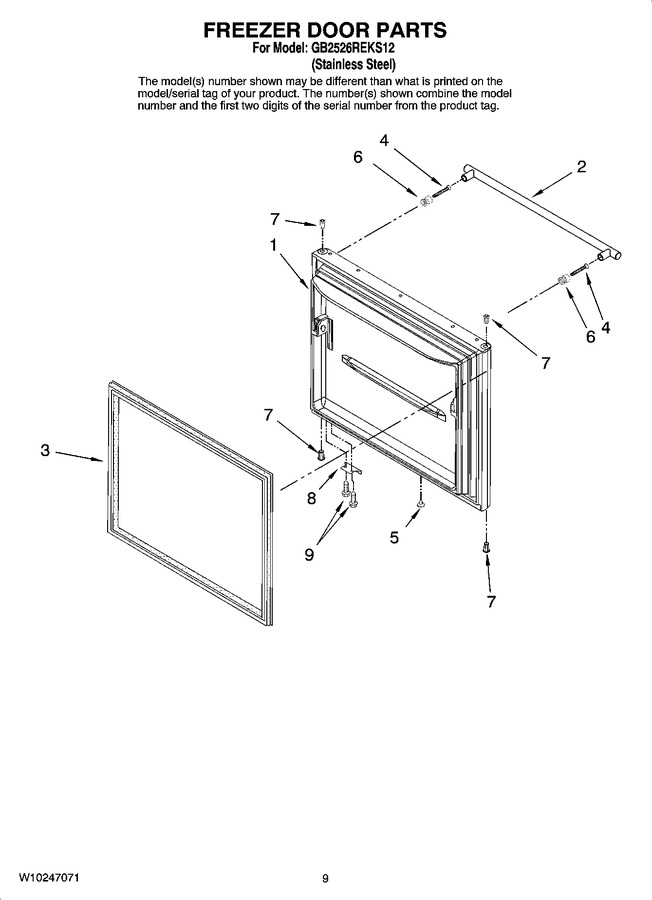

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185588		Freezer Door (w/ Insulation) (stainless Steel)		Appelez-nous	-
2	WP12850909		Handle, Door (stainless)   (Replaces: 12850909)				$ 291.96
3	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 362.28
4	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 10.28
5	67004838		Plug, Button (black)				$ 11.21
6	67006109		Mount, Handle		Appelez-nous	-
7	67004978		Bushing (black)				$ 22.10
8	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
9	WP98165		Screw   (Replaces: 67006287)				$ 8.57
