SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

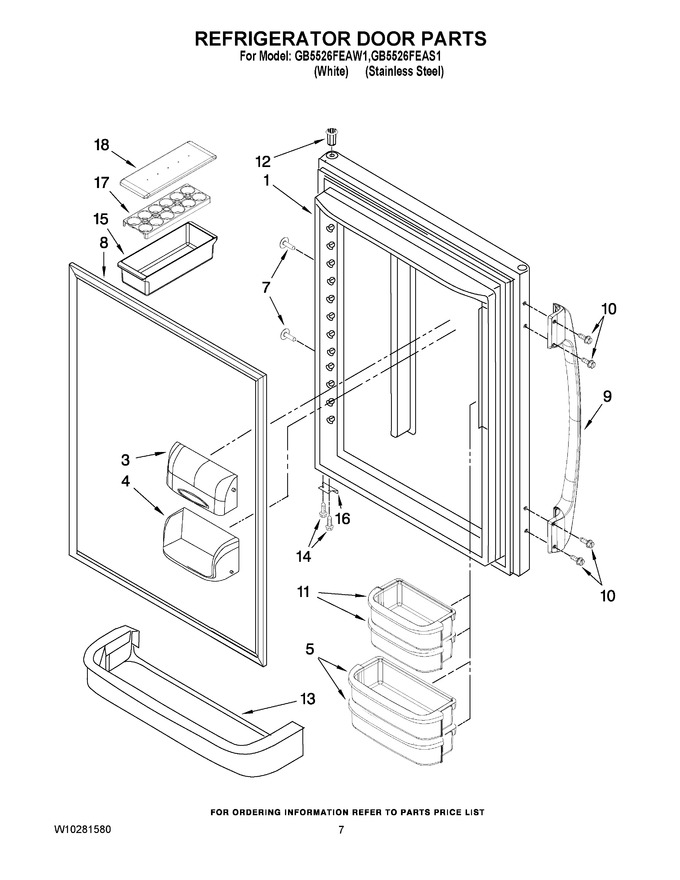

04 - Refrigerator Door Parts


05 - Freezer


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker


09 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658529WQ		Refrigerator Door (w/ Insulation) (white)				$ 439.53
1	13023849SQ		Refrigerator Door (w/ Insulation) (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	67004040		Bucket (2) (medium)   (Replaces: 12801902V)				$ 91.42
7	12991101		Screw, Handle (black)				$ 12.83
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 347.85
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: W10164031)				$ 345.10
9	12846204S		Handle, Door (stainless)				$ 393.56
9	12658751W		Handle, Door (white)		Appelez-nous	-
10	12992801		Screw				$ 5.81
11	WP67004041		Door Bucket (2) (small)   (Replaces: 12801901V)				$ 84.77
12	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
12	67004978		Bushing (black)   (Replaces: 10961006B)				$ 21.05
13	12690501		Retainer, Door				$ 41.75
14	WP98165		Screw   (Replaces: 12990504)				$ 8.00
15	10423131SP		Bin, Utility		Appelez-nous	-
16	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
16	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
17	10436506S		Tray, Egg		Appelez-nous	-
18	10436404S		Lid-utility		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
