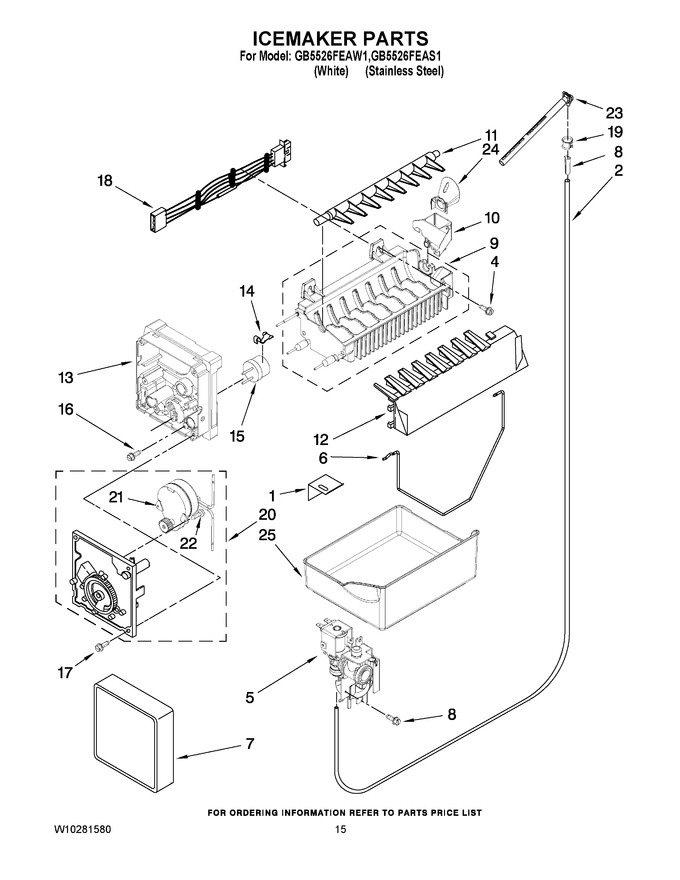

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256087) |
|
$ 93.00 | |||||
| 2 | W11120581 | Tube, Plastic (Replaces: B5705333SP) |
|
$ 118.98 | |||||
| 4 | W10001240 | Screw |
|
$ 8.78 | |||||
| 5 | W10158153 | Valve-inlet |
|
- | |||||
| 6 | WP67004028 | Arm, Shutoff (Replaces: 12868001) |
|
Immediately | $ 91.35 | ||||
| 7 | WPW10289690 | Cover, Front (Replaces: 12582501) |
|
Immediately | $ 8.40 | ||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101SP) |
|
Immediately | $ 7.82 | ||||
| 9 | W10122523 | Mold & Heater Assembly (also Order 542638) |
|
- | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP2321258 | Thermostat Order 542369 (cement Alumilastic) (Replaces: 2321258) |
|
$ 98.98 | |||||
| 16 | W10001280 | Screw |
|
- | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | 12975112 | Harness, Ice Maker |
|
- | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 20 | W10122522 | Module Assembly (includes Items 21& 22) |
|
- | |||||
| 21 | N/P | Motor (not Available, Order No.20) |
|
- | |||||
| 22 | 489136 | Screw |
|
$ 10.29 | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 24 | 12918001 | Funnel, Fill Tube |
|
Immediately | $ 12.41 | ||||
| 25 | WP67001255 | Pan, Ice (Replaces: 12695001) |
|
$ 203.08 | |||||
| 100 | WPW10190972 | Complete Ice Maker (Replaces: W10190972) |
|
$ 169.04 |
