SELECT A DIAGRAM

01 - Cabinet Parts

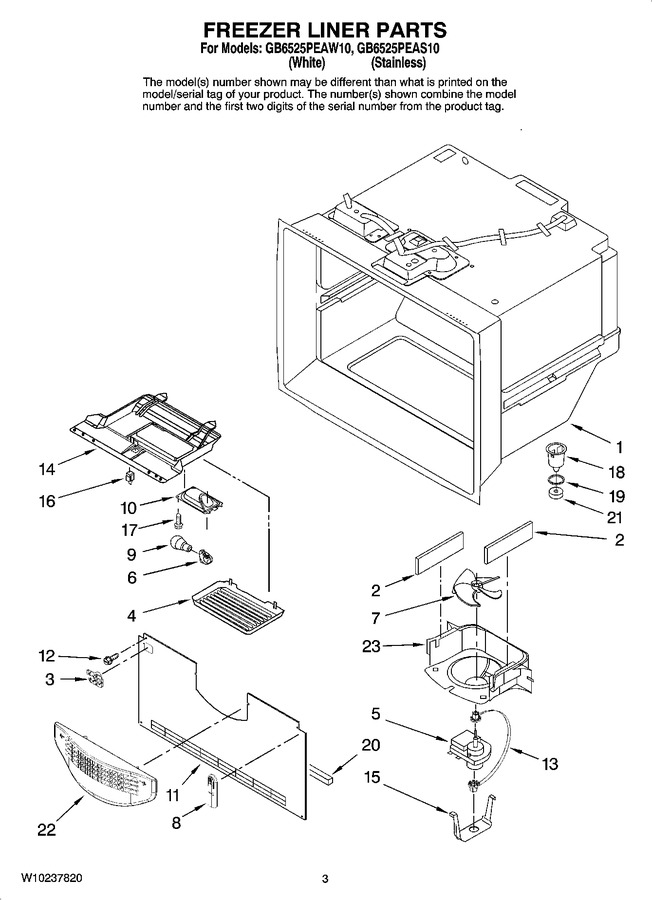

02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10856123		Gasket, Foam   (Replaces: 67001291)			Immediately	$ 7.68
3	W11448709		Guide, Fill Tube   (Replaces: 67005874)				$ 24.64
4	67003905		Cover, Light		Appelez-nous	-
5	WP67005023		Motor, Evaporator   (Replaces: 67005023)				$ 312.36
6	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.21
7	WP2169142		Blade, Evap. Fan   (Replaces: 2169142)			Immediately	$ 43.41
8	WP67003924		Cover, Thermistor   (Replaces: 67003924)				$ 7.82
9	WP67002552		Bulb, Light   (Replaces: 67002552)			Immediately	$ 11.75
10	W11702858		Housing, Light   (Replaces: 67001035)				$ 85.82
11	W10308417		Cover, Evaporator   (Replaces: 12226113)		Appelez-nous	-
12	67006425		Screw			Immediately	$ 6.95
13	W10121318		Grommet				$ 48.38
14	67003906		Module, Light				$ 116.80
15	13058002		Clip, Evap. Motor   (Replaces: W10208652)				$ 12.66
16	W11396033		Switch, Light   (Replaces: 67005653)			Immediately	$ 37.30
17	67006530		Screw		Appelez-nous	-
18	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 49.05
19	WPM0500703		Seal   (Replaces: M0500703)				$ 10.92
20	12739112		Gasket, Bottom		Appelez-nous	-
21	WPB8381501		Gasket   (Replaces: B8381501)				$ 7.41
22	WPW10175909		Grille, Fz Air   (Replaces: W10175909)			Immediately	$ 85.72
23	WPW10167023		Shroud, Evap.fan   (Replaces: W10167023)			Immediately	$ 66.28
NI	13065802		Harness, Lights (freezer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
