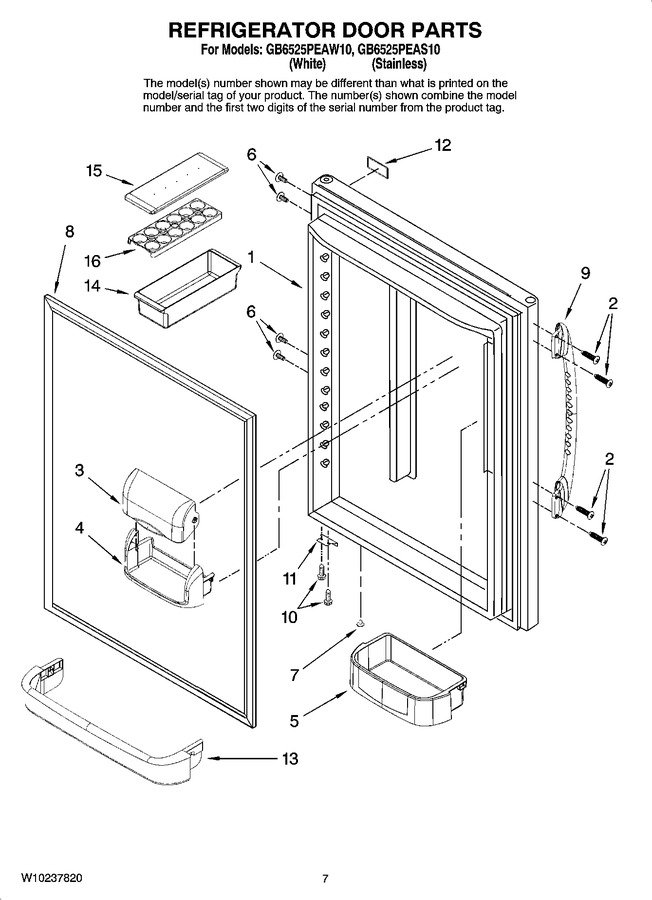

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023841SQ | Door, Refrigerator (stainless) |
|
- | |||||
| 1 | 67004363 | Door, Refrigerator (white) |
|
- | |||||
| 2 | 67006668 | Screw (4) (white) |
|
$ 12.83 | |||||
| 2 | 67007083 | Screw (4) (chrome) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | 67004040 | Bucket, Door (medium (4)) |
|
$ 95.99 | |||||
| 6 | 12991101 | Screw (4) (chrome) (Replaces: 67006408) |
|
$ 13.47 | |||||
| 6 | 12991103 | Screw (4) (white) |
|
$ 12.03 | |||||
| 7 | 10712401 | Plug, Button (2) (white) |
|
$ 7.79 | |||||
| 7 | 67004838 | Plug, Button (2) (black) |
|
$ 11.21 | |||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10164034) |
|
$ 361.01 | |||||
| 9 | 12846204S | Handle, Door (stainless) |
|
$ 413.23 | |||||
| 9 | WP12781004W | Handle, Door (white) (Replaces: 67006119) |
|
$ 183.57 | |||||
| 10 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 69.29 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 12 | 61002504 | Bezel, Nameplate (black) |
|
- | |||||
| 12 | 66981-5 | Bezel, Nameplate (white) |
|
- | |||||
| 13 | 12690502 | Retainer, Ref Door |
|
$ 45.03 | |||||
| 14 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 15 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 16 | 10436506 | Tray, Egg |
|
$ 8.28 |
