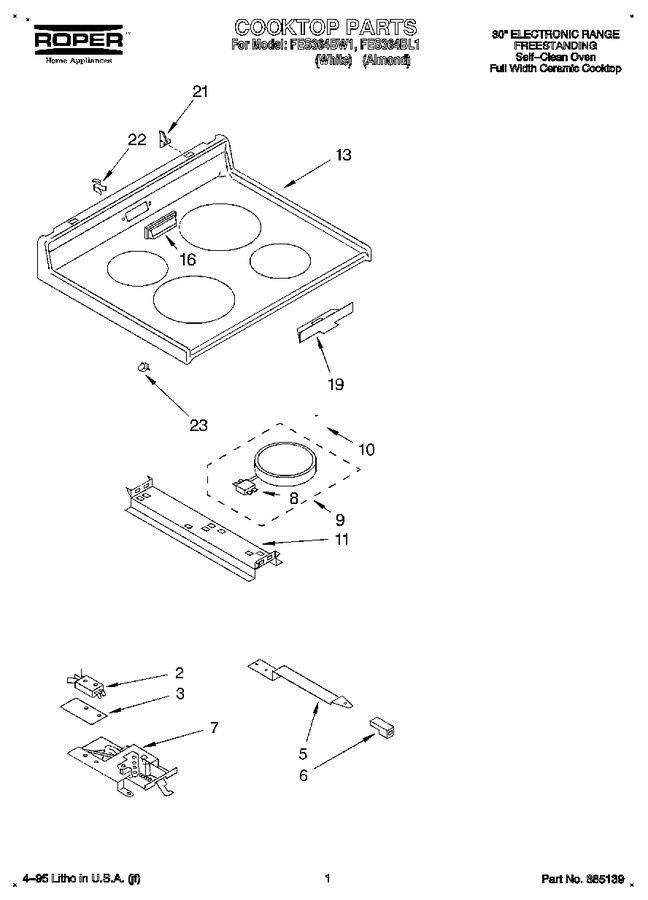

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3169497		Safety Switch		Appelez-nous	-
2	3169547		Screw (2)		Appelez-nous	-
3	3169498		Insulator, Switch		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
5	308422		Screw (2)		Appelez-nous	-
6	155023		Screw,			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
7	3148668		Latch Mechanism		Appelez-nous	-
8	3169340		Limiter, Temp. (2100w, Lf-rr)		Appelez-nous	-
8	3169339		Limiter, Temp. (1700w, Rf-lr)		Appelez-nous	-
9	3183648		Element, Surface (includes No.8) (2100w, Lf-rr)		Appelez-nous	-
9	3183647		Element, Surface (includes No.8) (1700w, Rf-lr)		Appelez-nous	-
10	3149191		Spring (8)				$ 9.45
10	WP486754		Screw (8)   (Replaces: 246119)				$ 8.01
11	3183087		Bracket, Element Support		Appelez-nous	-
11	3149333		Screw (4)				$ 5.33
13	3184122		Cooktop (white)		Appelez-nous	-
13	WP308685		Cooktop (screw (2))   (Replaces: 3367670)			Immediately	$ 7.87
13	3184123		Cooktop (almond Mdl.)		Appelez-nous	-
16	3149011		Cover, Vent (white)		Appelez-nous	-
16	3149012		Cover, Vent (almond)		Appelez-nous	-
19	3183510		Shield, Probe		Appelez-nous	-
21	3169295		Bracket, Cooktop (left)		Appelez-nous	-
21	WP681414		Bracket, Cooktop (screw, 10x1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
21	3169294		Bracket, Cooktop (right)		Appelez-nous	-
22	3149190		Clip, Mounting (2) (vent Cover)		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
	LIT3169489		Wiring Diagram		Appelez-nous	-
	LIT677973		Manual, Range		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
	LIT3187697		Use And Care Guide		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
