SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness, Optional

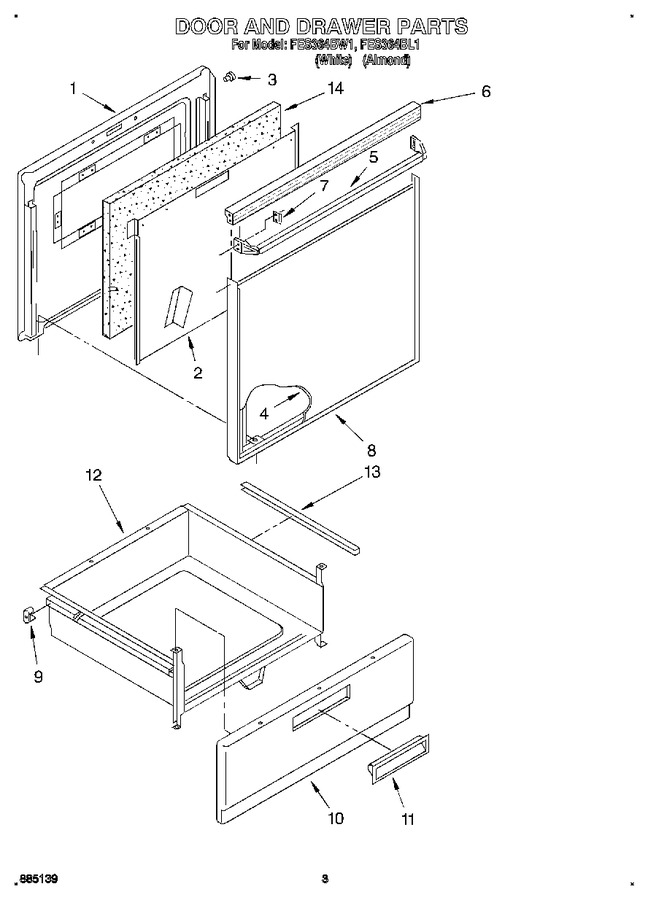

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Oven Door		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3185647		Screw (4) 8-18 X 3/8		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3148186		Panel, Glass		Appelez-nous	-
5	3184128		Handle, Door		Appelez-nous	-
6	307748		Screw (2)		Appelez-nous	-
6	3169515		Top, Door Vent		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
7	3149253		Screw (4)		Appelez-nous	-
8	3149253		Screw (4)		Appelez-nous	-
8	307748		Screw (3)		Appelez-nous	-
8	3188997		Frame, Door		Appelez-nous	-
9	307980		Glide, Rear (2)		Appelez-nous	-
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 8.11
10	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 8.11
10	3169432		Panel, Drawer (black)		Appelez-nous	-
11	3150615		Handle, Snap-in (black)		Appelez-nous	-
11	309029		Handle, Snap-in (screw, (2))		Appelez-nous	-
12	327887		Drawer, Utility		Appelez-nous	-
13	309329		Protector (2)		Appelez-nous	-
14	3147954		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
