SELECT A DIAGRAM

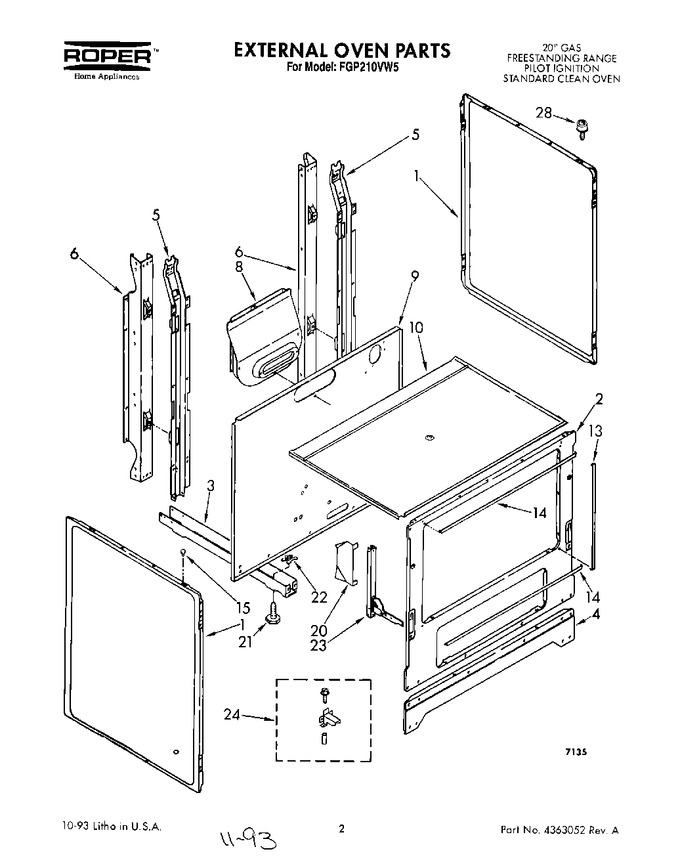

01 - External Oven


02 - Oven Door And Broiler


03 - Backguard


04 - Cooktop And Manifold, Lit/optional


05 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4157111)			Immediately	$ 7.87
1	4363025		Panel, Side (2) (almond Texture)		Appelez-nous	-
1	4363024		Panel, Side (2) (white Texture)		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
2	4363015		Frame, Front		Appelez-nous	-
3	4320525		Rail, Base (2)		Appelez-nous	-
4	4157122		Screw, 10-12 X 1/2 (4)		Appelez-nous	-
4	4363014		Base, Front		Appelez-nous	-
5	4157011		Support, Main (2)		Appelez-nous	-
5	4157123		Screw, 10-32 X 1/2 (1)		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157111)			Immediately	$ 7.87
6	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
6	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
6	4315382		Support, Rear (2)		Appelez-nous	-
8	WP681414		Screw, 10-12 X 1/2 (3)   (Replaces: 4157114)			Immediately	$ 8.47
8	4157014		Flue, Box		Appelez-nous	-
9	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4157111)			Immediately	$ 7.87
9	4315414		Panel, Rear		Appelez-nous	-
10	4363053		Burner Box		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315471		Seal, Door (2) (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
20	4157876		Shield		Appelez-nous	-
21	4157161		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Nut (4)		Appelez-nous	-
23	4315464		Hinge, Door (2)		Appelez-nous	-
24	4320545		Anti-tip Kit		Appelez-nous	-
28	4315409		Stud Screw (2)		Appelez-nous	-
28	4315408		Locator Stud (2)		Appelez-nous	-
