01 - External Oven

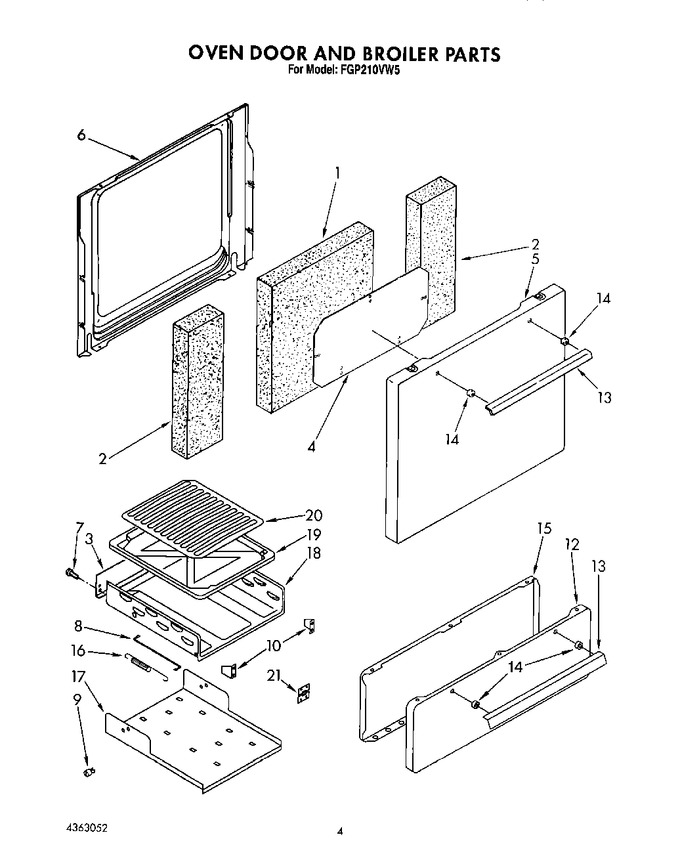

02 - Oven Door And Broiler
03 - Backguard
04 - Cooktop And Manifold, Lit/optional
05 - Internal Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4179320 | Insulation |
|
- | |||||
| 2 | 4179321 | Insulation |
|
- | |||||
| 3 | 4320540 | Back, Broiler Liner |
|
- | |||||
| 4 | 4363018 | Baffle |
|
- | |||||
| 5 | 4363037 | Panel, Door (almond) |
|
- | |||||
| 5 | 4363043 | Panel, Door (white) |
|
- | |||||
| 6 | 4179275 | Liner, Door |
|
- | |||||
| 7 | 4315522 | Screw |
|
- | |||||
| 8 | 4363047 | Rod, Push-pull (2) |
|
- | |||||
| 9 | 4363051 | Glide, Broiler (4) |
|
- | |||||
| 10 | 4363048 | Bracket (2) |
|
- | |||||
| 10 | WP308685 | Screw, 10-12 X 1/2 (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 12 | 4320575 | Panel, Broiler (screw, 8-18 X 1/2 (4)) |
|
- | |||||
| 12 | 4363019 | Panel, Broiler (white) |
|
- | |||||
| 12 | 4363020 | Panel, Broiler (almond) |
|
- | |||||
| 13 | 4157119 | Washer (2) |
|
- | |||||
| 13 | 4157794 | Handle, Door (2) |
|
- | |||||
| 13 | 4157118 | Screw, 10-12 X 5/8 (2) |
|
- | |||||
| 14 | 4157041 | Spacer (4) |
|
- | |||||
| 15 | 4315090 | Liner, Broiler Door |
|
- | |||||
| 16 | 4363045 | Spring (2) |
|
- | |||||
| 17 | 4362896 | Carriage Broiler |
|
- | |||||
| 18 | 4157172 | Liner, Broiler |
|
- | |||||
| 18 | WP308685 | Screw, 10-12 X 1/2 (4) (Replaces: 4157117) |
|
Immediately | $ 7.87 | ||||
| 19 | 4396923 | Pan, Broiler (Replaces: 4315095) |
|
Immediately | $ 60.71 | ||||
| 20 | 4315094 | Grid |
|
- | |||||
| 21 | WP308685 | Screw, 10-12 X 1/2 (4) (Replaces: 4157111) |
|
Immediately | $ 7.87 | ||||
| 21 | 4363046 | Hinge, Door (2) |
|
- |
