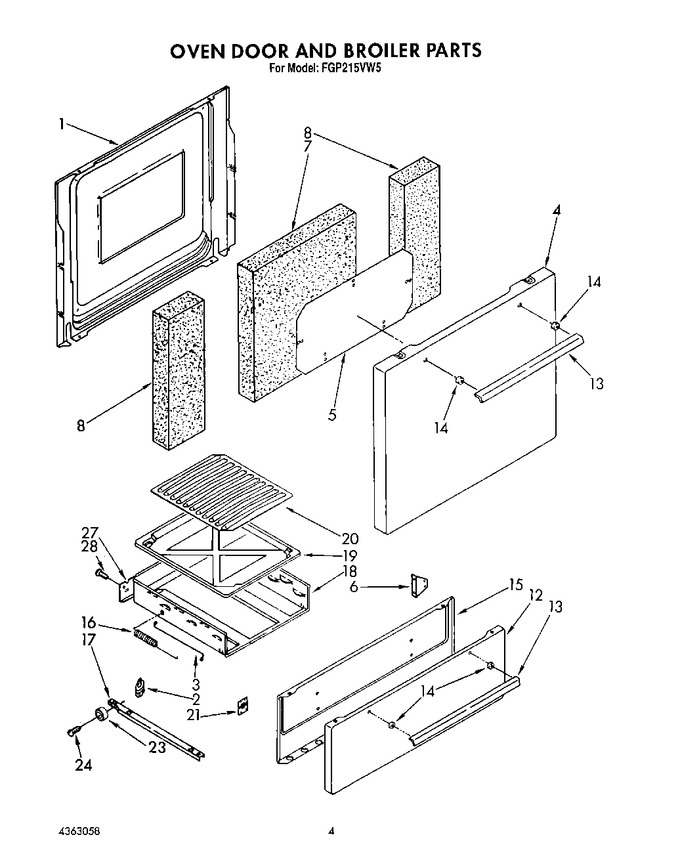

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179275		Liner, Door		Appelez-nous	-
2	4363051		Glide		Appelez-nous	-
3	4363047		Rod		Appelez-nous	-
4	4363043		Panel, Door (white)		Appelez-nous	-
4	4363037		Panel, Door (almond)		Appelez-nous	-
4	WP308685		Panel, Door (screw, 10-12 X 1/2 (5))   (Replaces: 4157117)			Immediately	$ 7.87
5	4363018		Baffle, Door		Appelez-nous	-
5	WP681414		Screw, 10-12 X 1/2 (5)   (Replaces: 4157114)			Immediately	$ 8.47
6	4363048		Bracket (2)		Appelez-nous	-
7	4179320		Insulation		Appelez-nous	-
8	4179321		Insulation (2)		Appelez-nous	-
12	WP308685		Panel, Broiler (screw, 10-12 X 1/2 (5))   (Replaces: 4157117)			Immediately	$ 7.87
12	4363020		Panel, Broiler (almond)		Appelez-nous	-
12	4363019		Panel, Broiler (white)		Appelez-nous	-
13	4320575		Screw, 10-12 X 5/8 (2)		Appelez-nous	-
13	4157119		Washer (2)		Appelez-nous	-
13	4157794		Handle, Door (2)		Appelez-nous	-
14	4157041		Spacer (4)		Appelez-nous	-
15	4315090		Liner, Broiler Door		Appelez-nous	-
16	4363045		Spring (2)		Appelez-nous	-
17	WP308685		Track (2) (screw, 10-12 X 1/2 (4))   (Replaces: 4315391)			Immediately	$ 7.87
17	4364033		Track (2) (r.h. Assembly)		Appelez-nous	-
17	4364032		Track (2) (l.h. Assembly)		Appelez-nous	-
18	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157117)			Immediately	$ 7.87
18	4362896		Carriage Broiler		Appelez-nous	-
19	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
20	4315094		Grid		Appelez-nous	-
21	4363046		Hinge, Door (2)		Appelez-nous	-
21	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
21	W10080180		Nut   (Replaces: 4157120)				$ 14.15
23	4315388		Roller (2)		Appelez-nous	-
24	4363050		Roller Pin (2)		Appelez-nous	-
27	4320540		Backer, Carriage		Appelez-nous	-
28	4315522		Screws (3)		Appelez-nous	-
