02 - External Oven
03 - Oven Door And Broiler
04 - Backguard
05 - Cooktop And Manifold, Lit/optional
06 - Internal Oven
SELECT A DIAGRAM
New Model Search:

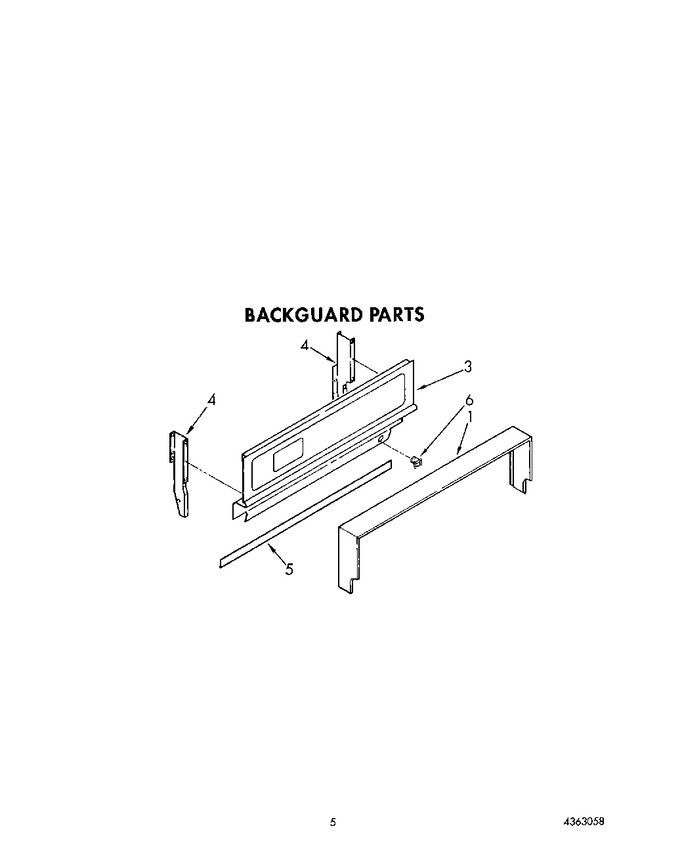

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4315545 | Frame |
|
- | |||||
| 1 | 4157121 | Screw, 10-12 X 3/8 (6) |
|
- | |||||
| 3 | 4315546 | Panel, Backguard (white) |
|
- | |||||
| 3 | 4315547 | Panel, Backguard (almond) |
|
- | |||||
| 4 | 4157160 | Support, Backguard (right Hand) |
|
- | |||||
| 4 | 4157159 | Support, Backguard (left Hand) |
|
- | |||||
| 4 | 4157123 | Support, Backguard (screw, 10-32 X 1/2 (1)) |
|
- | |||||
| 5 | 4363055 | Panel, Lower |
|
- | |||||
| 6 | 4157127 | Clamp, Cable |
|
- |
