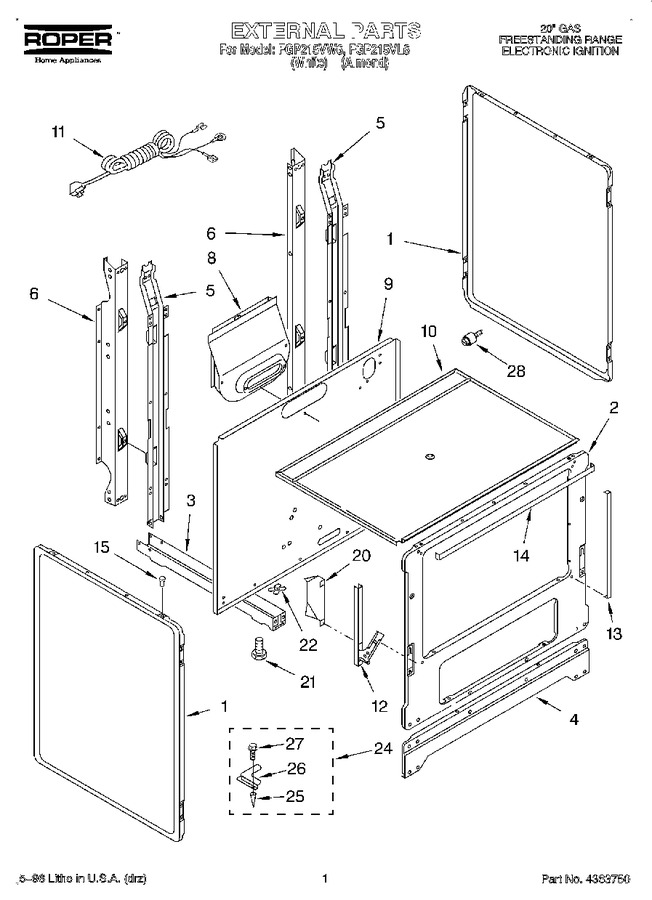

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4363024 | Panel, Side (2) (white) |
|
- | |||||
| 1 | 4363025 | Panel, Side (2) (almond) |
|
- | |||||
| 1 | WP308685 | Panel, Side (2) (screw) (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 2 | WP308685 | Screw (Replaces: 4320460) |
|
Immediately | $ 7.87 | ||||
| 2 | 4315206 | Frame, Front |
|
- | |||||
| 3 | 4363194 | Rail, Base (2) |
|
- | |||||
| 4 | 4363014 | Base, Front |
|
- | |||||
| 5 | 4157011 | Support, Main (2) |
|
- | |||||
| 5 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 6 | 4315382 | Support, Rear (2) |
|
- | |||||
| 6 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 8 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 8 | 4363002 | Box, Flue |
|
- | |||||
| 9 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 9 | 4315414 | Panel, Rear |
|
- | |||||
| 9 | 4320661 | Screw |
|
- | |||||
| 10 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 10 | 4363053 | Burner Box |
|
- | |||||
| 11 | 4363111 | Cord, Power |
|
- | |||||
| 11 | 4320577 | Screw, Grounding |
|
- | |||||
| 12 | 4320567 | Screw |
|
- | |||||
| 12 | 4363537 | Screw |
|
- | |||||
| 12 | 4315464 | Hinge, Door (2) |
|
- | |||||
| 13 | 4315334 | Seal, Door (2) (side) |
|
- | |||||
| 14 | 4315471 | Seal, Door (top) |
|
- | |||||
| 15 | 4157027 | Bumper, Cooktop (2) |
|
- | |||||
| 20 | 4157876 | Shield, Insulation |
|
- | |||||
| 21 | 4363195 | Leg, Leveler (4) |
|
- | |||||
| 22 | 4157332 | Nut (4) |
|
- | |||||
| 24 | 4363057 | Anti-tip Kit |
|
- | |||||
| 25 | 4321081 | Anchor (2) |
|
- | |||||
| 26 | 4320650 | Bracket |
|
- | |||||
| 27 | 4321082 | Screw (2) |
|
- | |||||
| 28 | 4315409 | Stud Screw (2) |
|
- | |||||
| 28 | 4315408 | Locator Stud (2) |
|
- |
