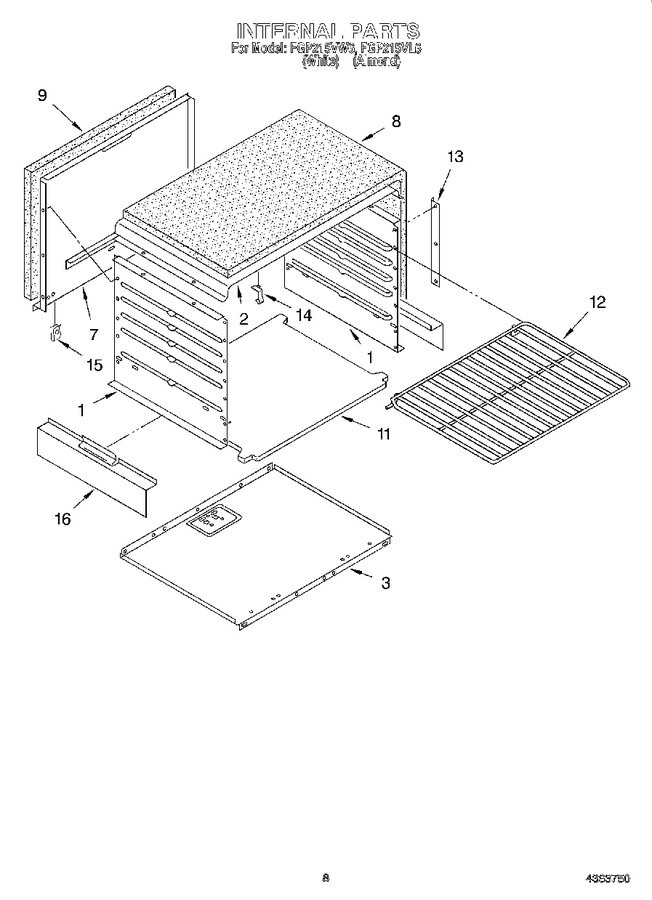

05 - Internal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363537		Screw		Appelez-nous	-
1	4315753		Liner, Oven Side (2)		Appelez-nous	-
2	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
2	4315048		Liner, Oven Top		Appelez-nous	-
3	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
3	4315415		Baffle, Bottom		Appelez-nous	-
7	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
7	4315060		Liner, Oven Back		Appelez-nous	-
8	WPW10208653		Insulation, Wrapper   (Replaces: 4157665)			Immediately	$ 55.47
9	4363054		Insulation, Back		Appelez-nous	-
11	4363739		Bottom, Oven		Appelez-nous	-
12	4362870		Rack, Oven (1)		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb   (Replaces: 4157329)			Immediately	$ 87.08
15	4157330		Clip, Speed		Appelez-nous	-
15	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
16	4363006		Shield, Radiation		Appelez-nous	-
