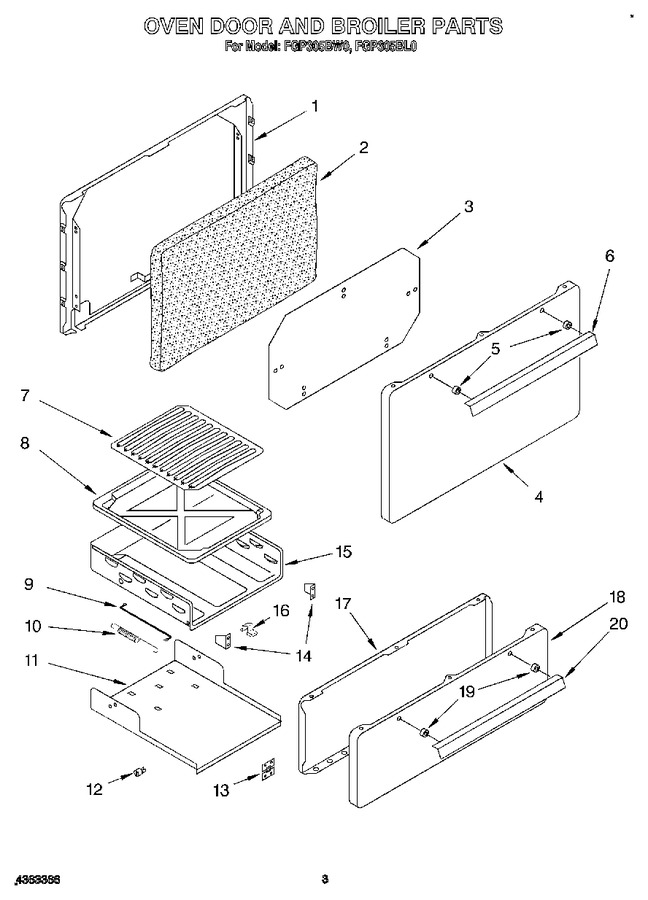

02 - Oven Door And Broiler


03 - Cooktop And Manifold, Lit/optional


04 - Backguard


05 - Internal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363285		Liner, Door		Appelez-nous	-
2	4363236		Insulation, Door		Appelez-nous	-
3	4363237		Screw, Baffle (4)		Appelez-nous	-
3	4363287		Baffle, Door		Appelez-nous	-
4	4320742		Panel, Oven Door (screw, Panel (5))		Appelez-nous	-
4	4363281		Panel, Oven Door (almond)		Appelez-nous	-
4	4363220		Panel, Oven Door (white)		Appelez-nous	-
5	4157041		Spacer, Handle (2)		Appelez-nous	-
6	4157040		Handle, Oven Door		Appelez-nous	-
6	4320579		Screw, Handle (2)		Appelez-nous	-
7	4315094		Grid, Broiler		Appelez-nous	-
8	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
9	4363047		Rod, Push (2)		Appelez-nous	-
10	4363233		Spring, Door (2)		Appelez-nous	-
11	4362896		Carriage Broiler		Appelez-nous	-
12	4363051		Glide, Broiler (4)		Appelez-nous	-
13	4363046		Hinge, Door (2)		Appelez-nous	-
14	WP308685		Screw, Bracket (4)   (Replaces: 4320407)			Immediately	$ 7.87
14	4363048		Bracket, Door (2)		Appelez-nous	-
15	4363145		Drawer, Broiler		Appelez-nous	-
16	4157959		Clip, Broiler		Appelez-nous	-
17	4321171		Liner, Broiler Door		Appelez-nous	-
18	4320816		Panel, Broiler (almond)		Appelez-nous	-
18	4320807		Panel, Broiler (white)		Appelez-nous	-
18	WP308685		Panel, Broiler   (Replaces: 4315391)			Immediately	$ 7.87
18	4320742		Screw, Panel (8)		Appelez-nous	-
19	4157041		Spacer, Handle (2)		Appelez-nous	-
20	4320579		Screw, Handle (2)		Appelez-nous	-
20	4157040		Handle, Door		Appelez-nous	-
