SELECT A DIAGRAM

01 - External


02 - Oven Door And Broiler


03 - Cooktop And Manifold, Lit/optional


04 - Backguard

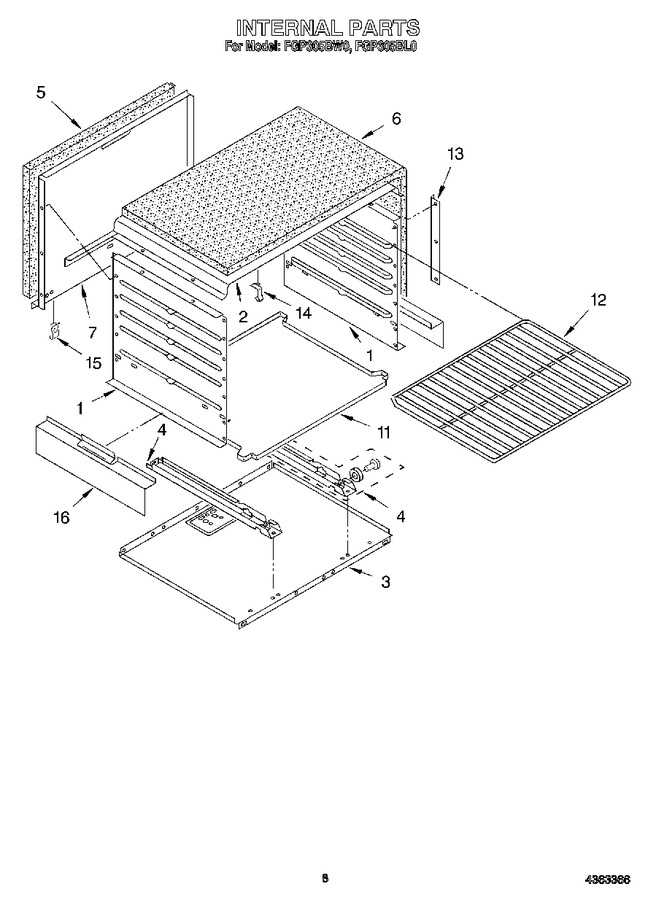

05 - Internal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4320407)			Immediately	$ 7.87
1	4315753		Liner, Oven Side (2)		Appelez-nous	-
2	4315045		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (7)   (Replaces: 4320407)			Immediately	$ 7.87
3	WP308685		Screw, 10-12 X 1/2 (7)   (Replaces: 4320407)			Immediately	$ 7.87
3	4315389		Baffle, Bottom		Appelez-nous	-
4	4364033		Track, Broiler (right Hand)		Appelez-nous	-
4	WP308685		Track, Broiler (screw, 10-12 X 1/2 (6))   (Replaces: 4320407)			Immediately	$ 7.87
4	4364032		Track, Broiler (left Hand)		Appelez-nous	-
5	WPW10208653		Insulation-back   (Replaces: 4157664)			Immediately	$ 55.47
6	WPW10208653		Insulation, Wrap   (Replaces: 4157665)			Immediately	$ 55.47
7	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.87
7	4315054		Liner, Oven Back		Appelez-nous	-
11	4363242		Bottom, Oven		Appelez-nous	-
12	4320804		Rack, Oven		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb (2)   (Replaces: 4157329)			Immediately	$ 87.08
15	4157330		Clip, Speed		Appelez-nous	-
16	4157331		Shield, Heat (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
