SELECT A DIAGRAM

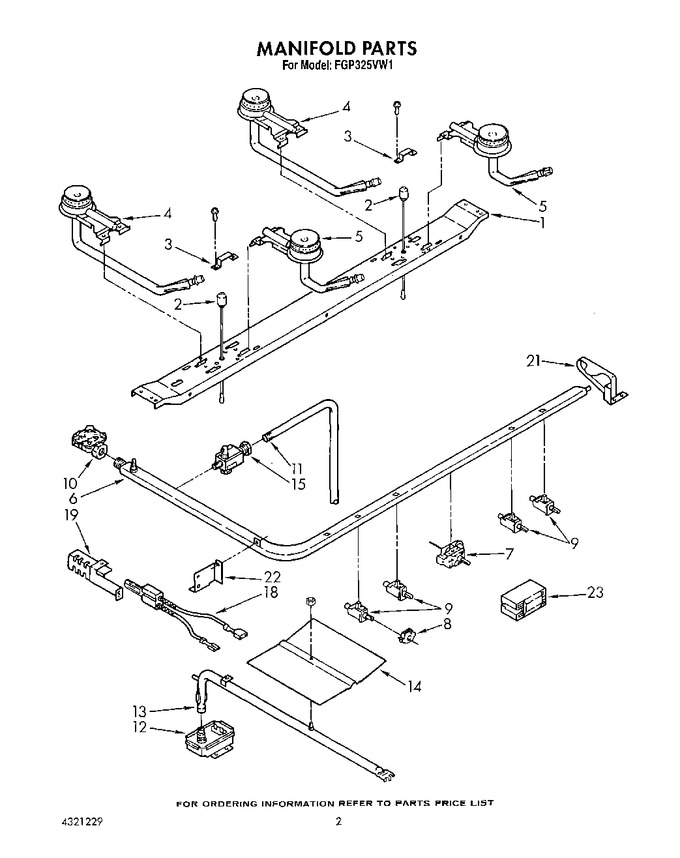

02 - Manifold


03 - Backguard


04 - External Oven


05 - Oven Door


06 - Broiler


07 - Internal Oven


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157078		Support, Top Burner		Appelez-nous	-
2	4320433		Electrode (right)		Appelez-nous	-
2	4320434		Electrode (left)		Appelez-nous	-
3	4320432		Bracket, Spark Ignitor (2)		Appelez-nous	-
3	4320431		Screw (2)		Appelez-nous	-
4	4179101		Burner, Rear (2)		Appelez-nous	-
5	4179100		Burner, Front		Appelez-nous	-
6	4320558		Pipe, Manifold		Appelez-nous	-
6	4320435		Screw, Mounting		Appelez-nous	-
7	4320594		Thermostat		Appelez-nous	-
8	WP4157180		Valve, Switch   (Replaces: 4157180)				$ 119.66
9	4314821		Valve, Gas 90 Degree (4)		Appelez-nous	-
10	4320438		Regulator, Pressure		Appelez-nous	-
11	4320595		Tubing		Appelez-nous	-
12	4320442		Valve, Electric Gas		Appelez-nous	-
12	WP308685		Screw (2)   (Replaces: 4320407)			Immediately	$ 7.87
13	4320441		Oven Burner		Appelez-nous	-
14	4320440		Spreader, Flame		Appelez-nous	-
15	4157661		Valve, Shut Off		Appelez-nous	-
18	4320445		Ignitor		Appelez-nous	-
19	4320447		Shield		Appelez-nous	-
21	4320444		Bracket (r.h.)		Appelez-nous	-
22	4320443		Bracket (l.h.)		Appelez-nous	-
23	4157171		Plate, Mounting		Appelez-nous	-
23	4320446		Module, Spark		Appelez-nous	-
