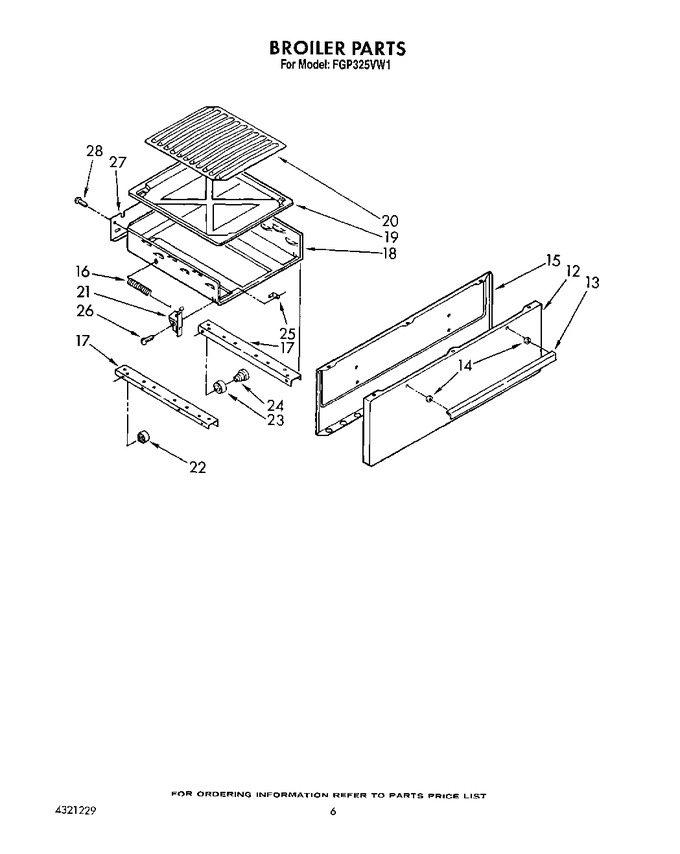

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	4320457		Panel, Broiler (white)		Appelez-nous	-
12	4320458		Panel, Broiler (almond)		Appelez-nous	-
12	WP308685		Panel, Broiler (screw)   (Replaces: 4157117)			Immediately	$ 7.87
12	4315383		Panel, Broiler (10-12 X 1/2 (5))		Appelez-nous	-
13	4157208		Handle		Appelez-nous	-
14	4157041		Spacer		Appelez-nous	-
15	4315621		Liner, Broiler Door		Appelez-nous	-
16	4157043		Spring (2)		Appelez-nous	-
17	4315383		Track, Upper (2)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4315391)			Immediately	$ 7.87
18	4157172		Carriage, Broiler		Appelez-nous	-
18	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157117)			Immediately	$ 7.87
19	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
20	4315094		Grid		Appelez-nous	-
21	4157048		Hinge, Door (r.h.)		Appelez-nous	-
21	4157049		Hinge, Door (l.h.)		Appelez-nous	-
21	WP308685		Hinge, Door (screw, 10-12 X 1/2 (4))   (Replaces: 4157111)			Immediately	$ 7.87
21	W10080180		Hinge, Door (nut)   (Replaces: 4157120)				$ 14.15
22	4315387		Bumper, Nylon (4)		Appelez-nous	-
23	4315388		Roller (2)		Appelez-nous	-
24	4315381		Pin, Roller (2)		Appelez-nous	-
25	4157053		Plate (2)		Appelez-nous	-
26	4157054		Screw (2)		Appelez-nous	-
27	4320540		Bracket, Carriage		Appelez-nous	-
28	4315522		Screw (3)		Appelez-nous	-
