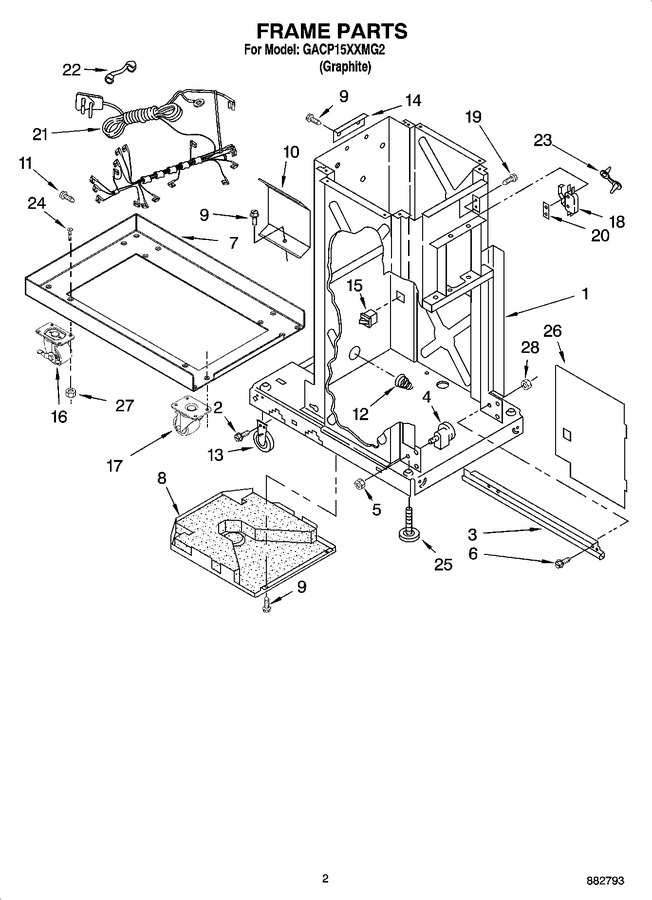

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
3	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
3	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
4	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 21.19
5	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
6	WP486754		Screw, 6-32 X 3/8 (4)   (Replaces: 777458)				$ 8.01
7	9871958		Base, Frame		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
9	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
10	9870867		Shield, Slide Track (2)		Appelez-nous	-
11	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
12	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
13	W11023674		Wheel, Leveler (2)   (Replaces: 9870585)				$ 54.05
14	775668		Angle, Top Bracket		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
16	9871956		Caster, Rigid		Appelez-nous	-
17	9871957		Caster, Swivel		Appelez-nous	-
18	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
19	777849		Screw, 6-20 X 1.0				$ 7.36
20	777850		Plate, Nut				$ 77.13
21	9872119		Wiring Harness & Power Cord		Appelez-nous	-
22	9872015		Bushing, Cord		Appelez-nous	-
23	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
24	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
25	WPW10001130		Foot, Leveler (4)   (Replaces: 775526)			Immediately	$ 7.80
26	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
27	WP486692		Nut   (Replaces: 486692)				$ 8.43
28	W11759042		Nut   (Replaces: 3400938)		Appelez-nous	-
