SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

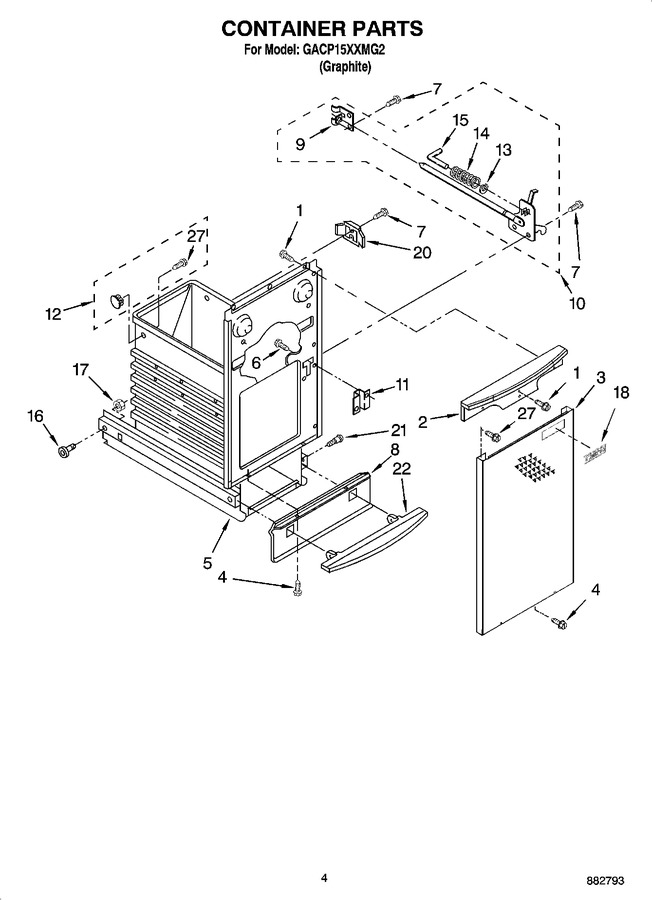

04 - Container Parts


05 - Cabinet And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400888		Screw, 8-18 X 1/2   (Replaces: 3400888)				$ 7.50
2	WP9871267		Handle, Container   (Replaces: 9871267)				$ 301.60
3	9871955		Panel, Container Front (white & Black)		Appelez-nous	-
4	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
5	884573		Container Assembly				$ 308.55
6	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
7	WP489478		Screw, 8 X 1/2 Ab   (Replaces: 489478)				$ 8.18
8	WPW10242557		Plate, Toe   (Replaces: 777328)				$ 142.53
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
11	775665		Plate, Latch				$ 62.39
12	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
13	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
14	775736		Spring				$ 93.80
15	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
16	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	2253774		Nameplate		Appelez-nous	-
20	9871125		Actuator, Safety Switch				$ 29.37
21	WP780263		Screw, 8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
22	W11679165		Pedal, Foot   (Replaces: 4149672)				$ 62.46
27	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
