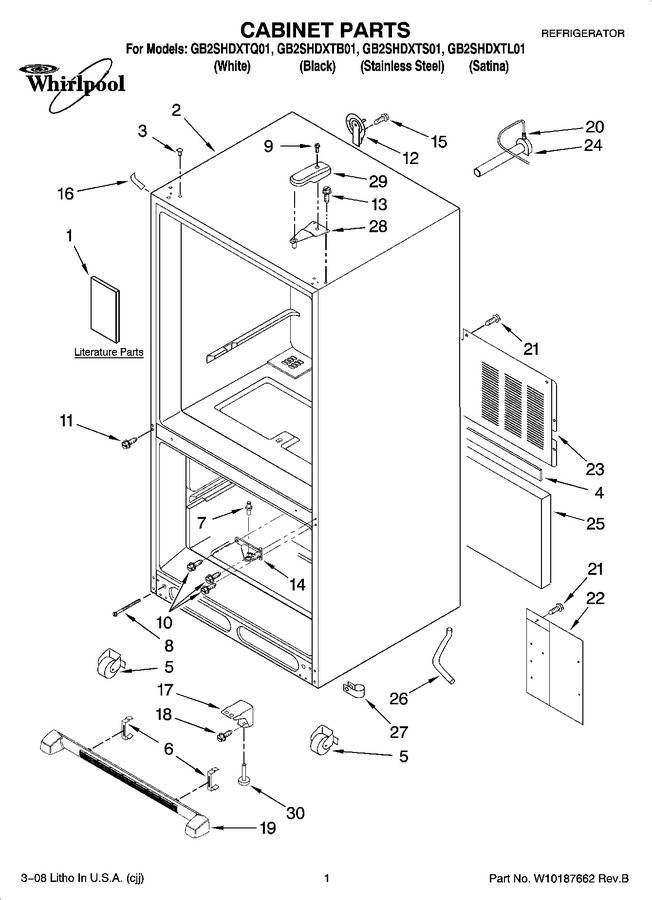

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137645 | Use & Care Guide |
|
- | |||||
| 1 | W10179468 | Energy Guide |
|
- | |||||
| 1 | W10165418 | Tech Sheet |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 4 | B5759649 | Insulation |
|
- | |||||
| 5 | 67006118 | Roller Assembly |
|
- | |||||
| 6 | 12627302 | Clip, Grille |
|
$ 5.84 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | W11573362 | Screw (3) (Replaces: 67006380) |
|
$ 14.72 | |||||
| 11 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 12 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 13 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 14 | WP12607104ED | Hinge, Center (black) (Replaces: 67007043) |
|
$ 167.35 | |||||
| 14 | W11689473 | Hinge, Center (white) (Replaces: 67006960) |
|
$ 69.79 | |||||
| 15 | 12992301 | Screw (Replaces: 67006433) |
|
$ 7.32 | |||||
| 16 | 67003484 | Cover, Corner (white) |
|
$ 21.42 | |||||
| 16 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 17 | 12906303WD | Foot, Cabinet (Replaces: 67007174) |
|
$ 88.58 | |||||
| 18 | 67006564 | Screw (8) |
|
Immediately | $ 8.15 | ||||
| 19 | WPW10534162 | Grille Assembly (includes Clips) (black) (Replaces: 67006954) |
|
$ 148.16 | |||||
| 19 | WPW10534161 | Grille Assembly (includes Clips) (white) (Replaces: 67007004) |
|
$ 147.09 | |||||
| 20 | WPM0114003 | Clip (Replaces: M0114003) |
|
$ 11.60 | |||||
| 21 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 22 | 67001097 | Cover, Water Valve |
|
- | |||||
| 23 | 12575101ED | Cover, Unit |
|
- | |||||
| 24 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 25 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 26 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 27 | 67001067 | Clip, Drain Tube |
|
$ 9.66 | |||||
| 28 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 29 | 67001012 | Cover, Hinge (black) |
|
$ 49.71 | |||||
| 29 | 67001014 | Cover, Hinge (white) |
|
$ 22.34 | |||||
| 30 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| W10833902 | Clamp, Tube (Replaces: 8170942) |
|
$ 11.54 |
