Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658565W Refrigerator Door (w/liner) (white) Appelez-nous -
1 12658565B Refrigerator Door (w/liner) (black) Appelez-nous -
1 W10187674 Refrigerator Door (w/liner) (stainless Steel) Appelez-nous -
1 W10187675 Refrigerator Door (w/liner) (satina) Appelez-nous -
2 67006901 Screw In-Stock Immediately $ 8.02

3 WP12744905 Door, Dairy   (Replaces: 67003819) Special Order $ 108.56

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 83.82

5 WPW10371194 Bucket (medium) (4)   (Replaces: 67003777) In-Stock Immediately $ 73.55

6 WP12246610 Plug, Handle Hole (stainless Steel)   (Replaces: 12246606) In-Stock Immediately $ 7.76

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 67001131) In-Stock Immediately $ 7.76

6 WP67001130 Plug, Handle Hole (white)   (Replaces: 67001130) In-Stock Immediately $ 5.98

7 67004838 Plug, Button (black) Special Order $ 10.68

7 10712401 Plug, Button (white) Special Order $ 7.79

8 W10443313 Door Gasket, Magnetic (white)   (Replaces: W10130893) Special Order $ 343.82

8 WPW10436248 Door Gasket, Magnetic (black)   (Replaces: W10131327) Special Order $ 286.97

9 2254600S Door Handle (stainless Steel) Special Order $ 106.71

9 WP2254600W Door Handle (white)   (Replaces: 2254600W) Special Order $ 235.14

9 WP2254600B Door Handle (black)   (Replaces: 2254600B) Special Order $ 208.77

10 WP67003638 Door Closure (white)   (Replaces: 67003638) In-Stock Immediately $ 7.76

10 WP67003639 Door Closure (black)   (Replaces: 67003639) Special Order $ 86.02

11 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 11.96

12 67001748 Retainer Appelez-nous -
13 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.00

14 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 65.99

14 W11708403 Stop, Door (black)   (Replaces: 67003780) In-Stock Immediately $ 14.05

15 WP67004977 Bushing (white)   (Replaces: 67004977) Special Order $ 7.81

15 67004978 Bushing (black) Special Order $ 21.05

16 2220214 Nameplate Special Order $ 32.43


    View Diagram in Separate Window     Print Icon   Print Part List

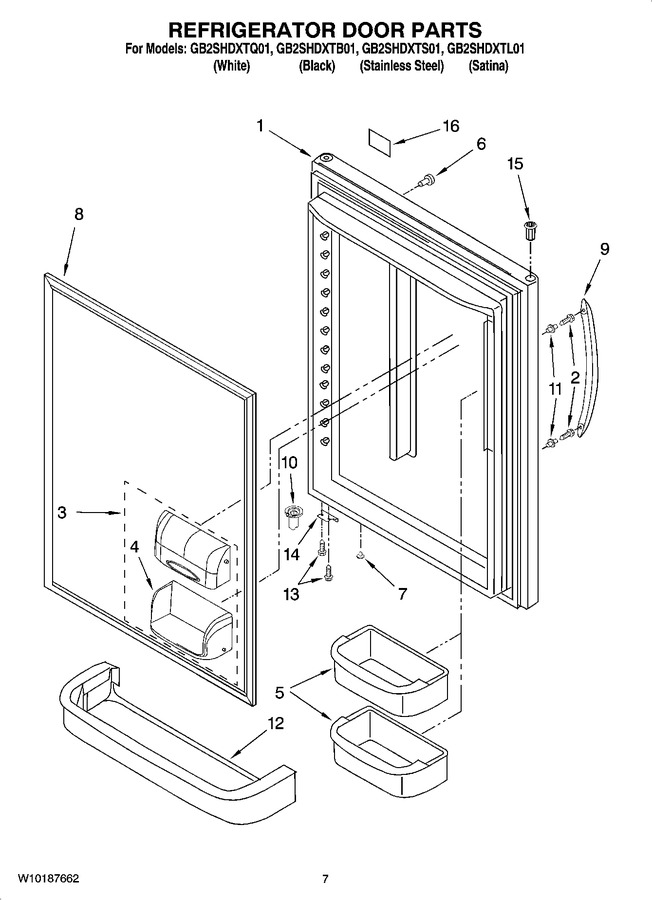

Diagram for GB2SHDXTL01
