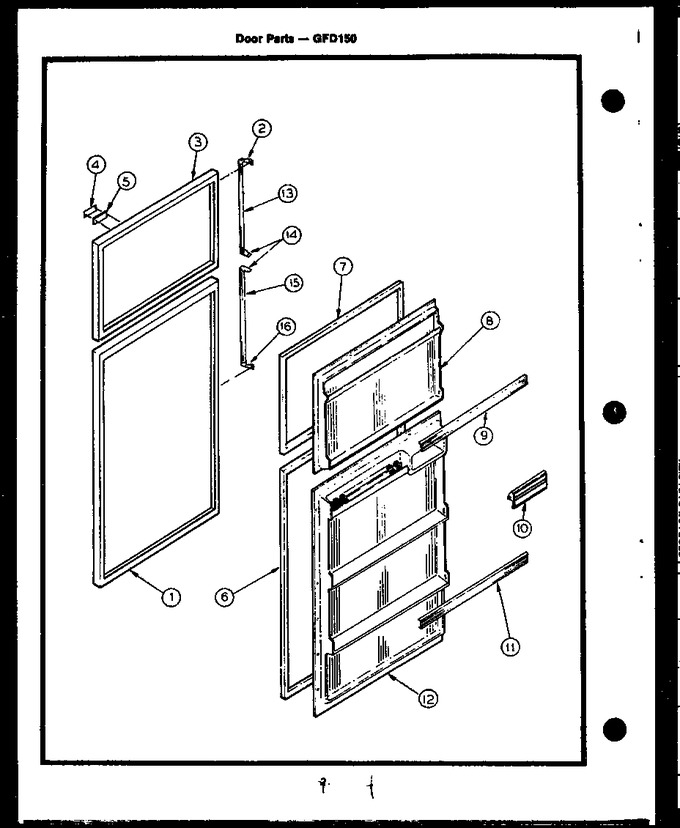

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
1	53319F		Exterior Panel - Ref White		Appelez-nous	-
1	53319N		Exterior Panel - Ref Almond		Appelez-nous	-
2	0086577		Handle, End		Appelez-nous	-
3	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
3	Y086638N		Panel, Freezer Almond		Appelez-nous	-
3	Y086638F		Panel, Freezer White		Appelez-nous	-
4	53318		Label - Nameplate		Appelez-nous	-
5	53317		Frame - Nameplate		Appelez-nous	-
6	Y0053337		Gasket, Refrigerator Door		Appelez-nous	-
7	0053338		Gasket, Freezer Door		Appelez-nous	-
8	Y0053336		Interior Panel, Freezer		Appelez-nous	-
8	Y0086488		Screw		Appelez-nous	-
9	Y0053307		Rack, Freezer Door		Appelez-nous	-
10	0086480		Door, Butter		Appelez-nous	-
11	0053306		Rack, Refrigerator		Appelez-nous	-
12	Y0053335		Interior Panel, Refrigerator		Appelez-nous	-
12	Y0086488		Screw		Appelez-nous	-
13	Y0053333		Screw, Handle		Appelez-nous	-
13	86575		Grip - Handle Fz				$ 97.41
14	86599		Shelf - Fz		Appelez-nous	-
15	0086576		Sub 86575, Handle		Appelez-nous	-
16	0086578		End, Handle Bottom		Appelez-nous	-
NI	Y086629N		Kit, Door Conversion Almond		Appelez-nous	-
NI	Y086629F		Kit, Door Conversion White		Appelez-nous	-
NI	53303F		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	53303N		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	53309N		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	53309F		Button - Plug - L.h. Upper Hin		Appelez-nous	-
