01 - Cabinet Parts


02 - Page 1

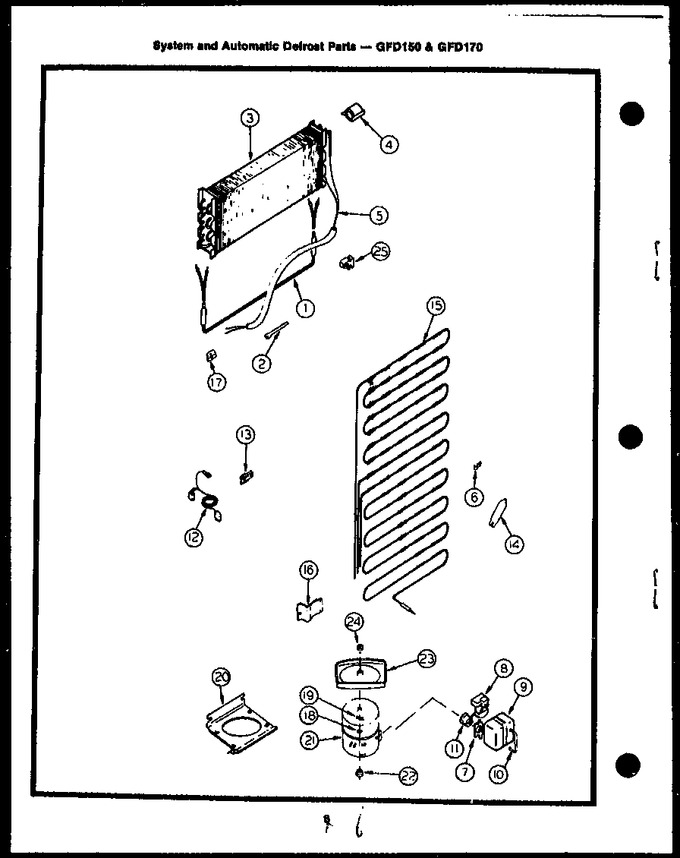

03 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0086486		Heater, Defrost		Appelez-nous	-
2	Y0086538		Clamp, Heater		Appelez-nous	-
3	Y0086499		Evaporator		Appelez-nous	-
4	0086498		Thermostat, Defrost		Appelez-nous	-
5	Y0086524		Suction And Cap Tube		Appelez-nous	-
6	Y0086453		Clamp Tube		Appelez-nous	-
7	Y0086539		Clip, Overload		Appelez-nous	-
7	Y0086472		Screw, Clamps		Appelez-nous	-
8	0086463		Relay		Appelez-nous	-
9	Y0086558		Cover, Terminal		Appelez-nous	-
10	Y0086540		Clamp, Cover		Appelez-nous	-
11	0086580		Overload		Appelez-nous	-
12	Y0086487		Service Cord		Appelez-nous	-
13	Y0086450		Clamp Cover		Appelez-nous	-
14	WPB2150504		Drier   (Replaces: Y0053314)				$ 123.28
15	Y0086592		Condenser		Appelez-nous	-
16	0086533		Use 0053697		Appelez-nous	-
17	Y0086502		Block, Evaporator Lh		Appelez-nous	-
18	Y0086532		Washer, Compressor Mounting		Appelez-nous	-
19	Y0086516		Clip, Compressor Mtg		Appelez-nous	-
20	0086503		Plate, Compressor Mtg		Appelez-nous	-
21	Y0086602		Sub 86684 Kit, Comp. & Rtnr.		Appelez-nous	-
22	0086590		Grommet Compressor Mounting		Appelez-nous	-
23	Y0086560		Defrost Pan		Appelez-nous	-
24	86537		Nut - Lock		Appelez-nous	-
25	53328		Block - Evaporator R.h.		Appelez-nous	-
NI	Y0086471		Screw Clamp		Appelez-nous	-
