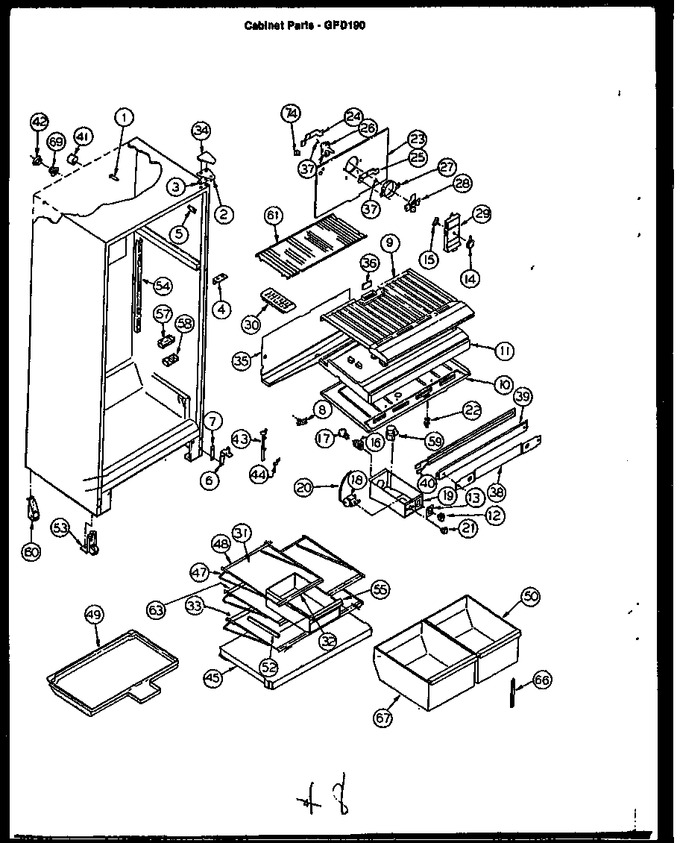

01 - Cabinet Parts
02 - Optional Ice Maker Installation Parts
03 - Page 1
04 - Page 3
05 - Page 4
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0086525 | Support, Coil Cover |
|
- | |||||
| 2 | Y00000000 | See Note Plug - L.h. Hinge Hole -- (2) |
|
- | |||||
| 2 | Y0053324 | Bracket, Hinge Top |
|
- | |||||
| 2 | 86632L | Button - Plug - Hinge |
|
- | |||||
| 2 | Y0086454 | Washer Nylon |
|
- | |||||
| 2 | 0086529 | Washer, Nylon |
|
- | |||||
| 2 | 86632W | Button - Plug - Hinge |
|
- | |||||
| 3 | Y0053325 | Shim, Upper Hinge |
|
- | |||||
| 4 | 86518 | Bracket - Center Hinge |
|
- | |||||
| 4 | 86460 | Pin - Center Hinge |
|
- | |||||
| 4 | Y0086454 | Washer Nylon |
|
- | |||||
| 4 | Y0086488 | Screw |
|
- | |||||
| 5 | 86603L | Trim-cabinet Corners |
|
- | |||||
| 5 | Y00000000 | See Note Trim - Cabinet Corners -- (4) |
|
- | |||||
| 5 | 86603W | Trim-cabinet Corners |
|
- | |||||
| 6 | 0086545 | Pin, Lower Hinge |
|
- | |||||
| 6 | 0086612 | Screw, Hinge |
|
- | |||||
| 6 | 0086611 | Hinge, Lower Door |
|
- | |||||
| 6 | Y53623 | Manual,install/oper |
|
- | |||||
| 7 | 0086515 | Shim, Lower Hinge |
|
- | |||||
| 8 | Y0053885 | Pin, Push |
|
- | |||||
| 8 | Y0086484 | Spout, Drain Tube |
|
- | |||||
| 9 | Y0053893 | Bottom, Freezer |
|
- | |||||
| 10 | 86496 | Screw - |
|
- | |||||
| 10 | Y0053914 | Top, Refrigerator |
|
- | |||||
| 11 | 53812 | Divider- Component |
|
$ 171.19 | |||||
| 12 | Y0086591 | Switch, Slide |
|
- | |||||
| 13 | Y86595 | Label - Control Box |
|
- | |||||
| 14 | Y0086501 | Knob, Damper Control |
|
- | |||||
| 15 | 0086490 | Damper, Fan Cover |
|
- | |||||
| 15 | Y0086491 | Clip |
|
- | |||||
| 16 | Y0086556 | Socket, Light |
|
- | |||||
| 17 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 17.51 | ||||
| 18 | Y0086456 | Screw |
|
- | |||||
| 18 | Y0053301 | Cold Control |
|
- | |||||
| 19 | Y0053311 | Box, Control |
|
- | |||||
| 20 | Y0086458 | Tube Plastic |
|
- | |||||
| 21 | 86571 | Knob - Control |
|
- | |||||
| 22 | Y0086495 | Use C3680304 |
|
- | |||||
| 23 | Y0053820 | Cover, Coil |
|
- | |||||
| 23 | WP67006908 | Screw (Replaces: Y0053908) |
|
Immediately | $ 7.90 | ||||
| 24 | Y0086481 | Bracket, Rear Motor Mounting |
|
- | |||||
| 25 | Y0086528 | Screw |
|
- | |||||
| 25 | Y0086482 | Bracket, Front Motor Mounting |
|
- | |||||
| 25 | Y0086488 | Screw |
|
- | |||||
| 26 | 0086563 | Sub 53626, Motor, Blower |
|
- | |||||
| 27 | 86552 | Ring - Fan Orifice |
|
$ 95.76 | |||||
| 27 | Y0086553 | Nut |
|
- | |||||
| 28 | Y0053312 | Fan |
|
- | |||||
| 29 | 0086514 | Cover, Fan |
|
- | |||||
| 30 | WP841180A | Sub 86467, Ice Tray (Replaces: Y0086468) |
|
Immediately | $ 43.06 | ||||
| 31 | Y0053723 | Glass, Cantilever Shelves |
|
- | |||||
| 32 | Y0053724 | Trim, Snap-on |
|
- | |||||
| 33 | Y0053721 | Frame, Cantilever Shelves |
|
- | |||||
| 34 | Y00000000 | See Note Cover - Top Hinge |
|
- | |||||
| 34 | 53870L | Cover-top Hinge Almond |
|
- | |||||
| 34 | 53870W | Cover-top Hinge White |
|
- | |||||
| 35 | 53821 | Trough - Drain |
|
- | |||||
| 36 | Y0086557 | Pad, Foam |
|
- | |||||
| 37 | Y0086469 | Bushing Motor Mounting |
|
- | |||||
| 38 | 53916 | Strap - Mullion Mounting |
|
- | |||||
| 39 | 53853W | Mullion White |
|
- | |||||
| 39 | 0086625 | Spacer, Mullion Mounting |
|
- | |||||
| 39 | 53853L | Mullion Almond |
|
- | |||||
| 39 | Y0086548 | Washer, Mullion Mounting |
|
- | |||||
| 39 | Y00000000 | See Note Mullion |
|
- | |||||
| 40 | Y0053819 | Heater Mullion |
|
- | |||||
| 41 | Y0086452 | Tube In Ferrule |
|
- | |||||
| 42 | Y0086568 | Ferrule, Outer |
|
- | |||||
| 43 | 53327 | Tube - Defrost Drain |
|
- | |||||
| 44 | Y0086453 | Clamp Tube |
|
- | |||||
| 45 | 0053915 | Cover, Crisper |
|
- | |||||
| 47 | Y0053808 | Frame, Meat Shelf |
|
- | |||||
| 48 | Y0053726 | Trim, Meat Shelf |
|
- | |||||
| 49 | 53875 | Pan - Defrost |
|
- | |||||
| 50 | Y0053811 | Pan, Crisper |
|
- | |||||
| 52 | Y0053906 | Hanger, Meat Pan, Lh |
|
- | |||||
| 52 | Y0086543 | Screw |
|
- | |||||
| 52 | Y0053907 | Hanger, Meat Pan, Rh |
|
- | |||||
| 53 | Y0053814 | Roller Assy., Front |
|
- | |||||
| 54 | Y0053676 | Screw, Channel To Liner |
|
- | |||||
| 54 | Y0053807 | Center Channel, Shelf Mtg. |
|
- | |||||
| 54 | 53707 | Channel - Shelf |
|
- | |||||
| 55 | Y0053813 | Pan, Meat |
|
- | |||||
| 55 | Y0053816 | Cover, Meat Pan |
|
- | |||||
| 57 | 0086483 | Cover, Air Deflector |
|
- | |||||
| 58 | Y0086497 | Deflector, Air |
|
- | |||||
| 59 | Y0053322 | Screw, Hinge |
|
- | |||||
| 59 | Y0086574 | Timer, Defrost |
|
- | |||||
| 60 | Y0053869 | Roller Assy., Rear |
|
- | |||||
| 61 | Y0053675 | Cap, Protector |
|
- | |||||
| 61 | 53815 | Shelf - Fz |
|
- | |||||
| 63 | Y0053727 | Trim, Rear |
|
- | |||||
| 66 | Y0053674 | Support, Crisper Cover |
|
- | |||||
| 67 | Y0053913 | Pan, Crisper |
|
- | |||||
| 69 | Y0086567 | Ferrule, Inner |
|
- | |||||
| 74 | Y0053657 | Bracket, Connector |
|
- | |||||
| NI | 86632L | Button - Plug - Hinge |
|
- | |||||
| NI | Y0086505 | Button, Decorative Plug |
|
- | |||||
| NI | Y0086573 | Harness, Wiring |
|
- | |||||
| NI | Y00000000 | See Note Button - Plug - Hinge -- (2) |
|
- | |||||
| NI | Y0053312 | Fan |
|
- | |||||
| NI | Y0086489 | Button Plug |
|
- | |||||
| NI | Y0053871 | Cover, Wiring |
|
- | |||||
| NI | Y0086550 | Button Plug |
|
- | |||||
| NI | Y0086508 | Button, Plug, Liner Holes |
|
- | |||||
| NI | 86632W | Button - Plug - Hinge |
|
- |
