01 - Cabinet Parts


02 - Optional Ice Maker Installation Parts


03 - Page 1


04 - Page 3


05 - Page 4

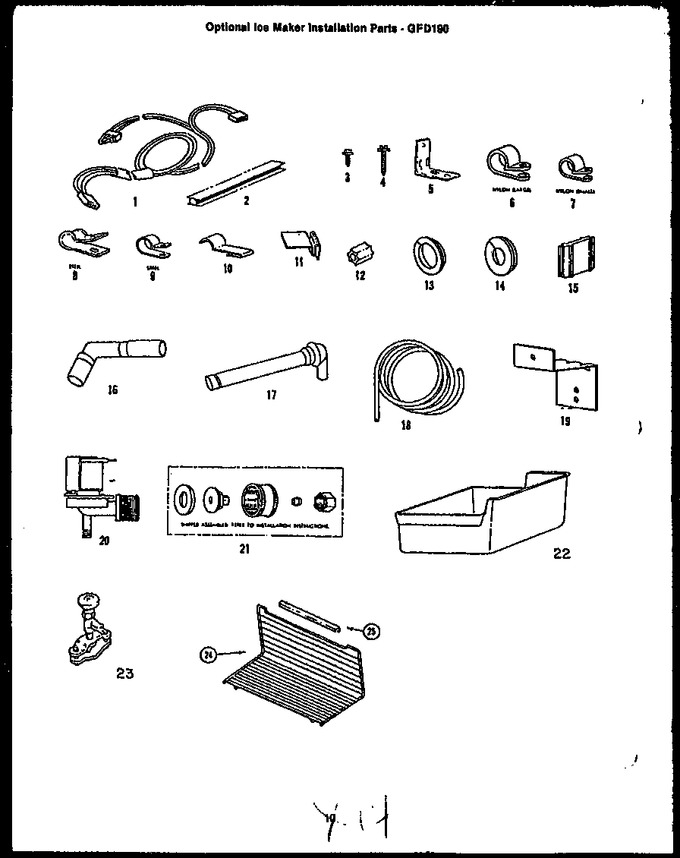

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0053882		Wiring Harness		Appelez-nous	-
2	Y0053651		Strip, Sealing		Appelez-nous	-
3	Y0086471		Screw Clamp		Appelez-nous	-
4	Y0053676		Screw, Channel To Liner		Appelez-nous	-
5	Y0086450		Clamp Cover		Appelez-nous	-
6	Y0053602		Clamp, Wiring Harness		Appelez-nous	-
7	Y0086478		Clamp Tube		Appelez-nous	-
8	Y0053600		Clamp, Steel, Tube		Appelez-nous	-
9	0053606		Clamp		Appelez-nous	-
10	Y0053652		Clip, Harness Location		Appelez-nous	-
11	Y0053620		Clip, Filler Tube		Appelez-nous	-
12	Y0053611		Nut, Sleeve		Appelez-nous	-
13	53709		Bushing - Coil Cover		Appelez-nous	-
14	Y0053710		Plug, Rear Panel & Coil Cover		Appelez-nous	-
15	Y0053630		Adapter Plug, Rear		Appelez-nous	-
16	Y0053671		Tube, Water Fill (plastic)		Appelez-nous	-
17	Y0086686		Inlet Elbow		Appelez-nous	-
18	Y0086685		Inlet Tube		Appelez-nous	-
19	53648		Bracket - Valve To Rear Panel		Appelez-nous	-
20	Y0053627		Valve		Appelez-nous	-
21	53628		Panel Support Plate		Appelez-nous	-
22	Y0086677		Container, Ice		Appelez-nous	-
23	Y0053604		Ice Maker Household Hook Up		Appelez-nous	-
24	53645		Support - Shelf		Appelez-nous	-
24	Y0053644		Screw, Supports		Appelez-nous	-
24	Y0053649		Shelf, Ice Maker		Appelez-nous	-
25	53650		Hanger - Shelf		Appelez-nous	-
