SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Freezer Liner Parts
02 - Freezer Liner Parts

Diagram for 03 - Freezer Door Parts
03 - Freezer Door Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Refrigerator Door Parts
05 - Refrigerator Door Parts

Diagram for 06 - Unit Parts
06 - Unit Parts

Diagram for 07 - Shelf Parts
07 - Shelf Parts

Diagram for 08 - Icemaker Parts, Optional Parts
08 - Icemaker Parts, Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658565W Refrigerator Door (w/liner) (white) Appelez-nous -
1 12658565B Refrigerator Door (w/liner) (black) Appelez-nous -
1 W10187674 Refrigerator Door (w/liner) (stainless Steel) Appelez-nous -
1 W10187675 Refrigerator Door (w/liner) (satina) Appelez-nous -
2 67006901 Screw In-Stock Immediately $ 9.49

3 WP12744905 Door, Dairy   (Replaces: 67003819) Special Order $ 113.99

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 WPW10371194 Bucket (medium) (4)   (Replaces: 67003777) In-Stock Immediately $ 77.23

6 WP12246610 Plug, Handle Hole (stainless Steel)   (Replaces: 12246606) In-Stock Immediately $ 8.15

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 67001131) In-Stock Immediately $ 8.15

6 WP67001130 Plug, Handle Hole (white)   (Replaces: 67001130) In-Stock Immediately $ 5.98

7 67004838 Plug, Button (black) Special Order $ 11.21

7 10712401 Plug, Button (white) Special Order $ 7.79

8 W10443313 Door Gasket, Magnetic (white)   (Replaces: W10130893) Special Order $ 361.01

8 WPW10436248 Door Gasket, Magnetic (black)   (Replaces: W10131327) Special Order $ 286.97

9 2254600S Door Handle (stainless Steel) Special Order $ 106.71

9 WP2254600W Door Handle (white)   (Replaces: 2254600W) Special Order $ 246.90

9 WP2254600B Door Handle (black)   (Replaces: 2254600B) Special Order $ 219.21

10 WP67003638 Door Closure (white)   (Replaces: 67003638) In-Stock Immediately $ 8.15

10 WP67003639 Door Closure (black)   (Replaces: 67003639) Special Order $ 90.32

11 6700113 Mount, Handle Appelez-nous -
12 67001748 Retainer Appelez-nous -
13 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

14 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

14 W11708403 Stop, Door (black)   (Replaces: 67003780) In-Stock Immediately $ 14.75

15 WP67004977 Bushing (white)   (Replaces: 67004977) Special Order $ 8.20

15 67004978 Bushing (black) Special Order $ 22.10

16 2220214 Nameplate Special Order $ 32.43


    View Diagram in Separate Window     Print Icon   Print Part List

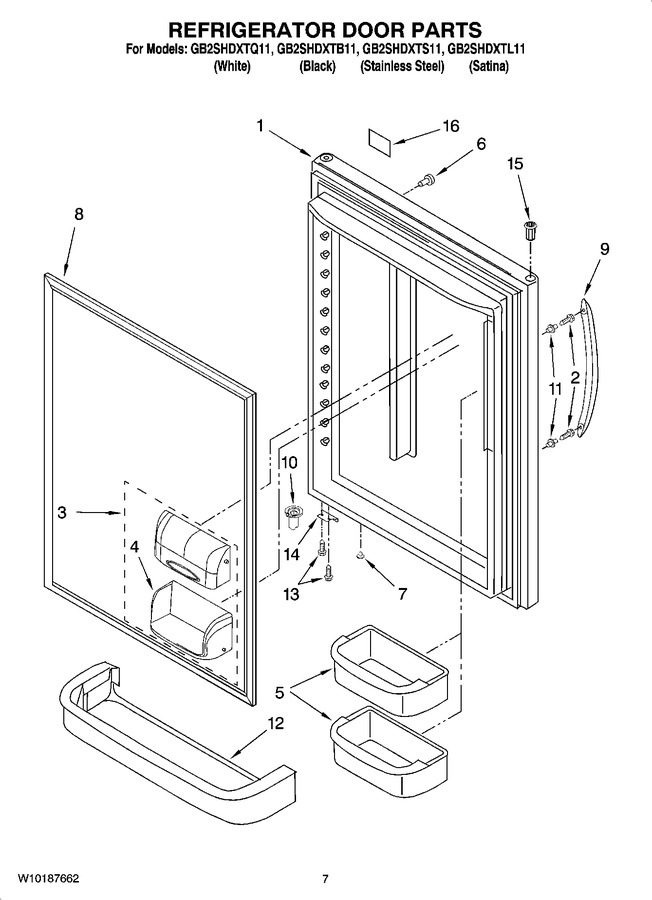

Diagram for GB2SHDXTS11
