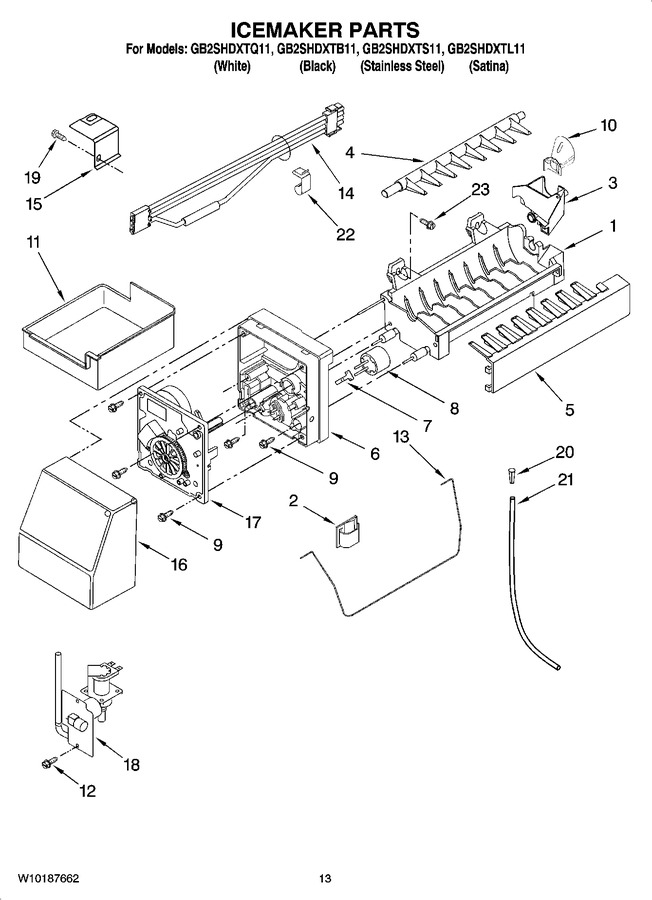

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPM0104106 | Clip (Replaces: 4344265) |
|
$ 7.78 | |||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 8170928) |
|
$ 51.19 | |||||
| 4 | WP627843 | Ejector (Replaces: 8170927) |
|
$ 83.60 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 8170929) |
|
$ 86.05 | |||||
| 6 | WP2195914 | Support (Replaces: 8170932) |
|
$ 104.57 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 8170930) |
|
$ 11.05 | |||||
| 9 | WP681249 | Screw (4) (Replaces: 8170933) |
|
Immediately | $ 7.86 | ||||
| 10 | 12918001 | Funnel, Fill Tube (Replaces: 67005603) |
|
Immediately | $ 12.41 | ||||
| 11 | WP67001255 | Pan, Ice (Replaces: 67001255) |
|
$ 203.08 | |||||
| 12 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 | |||||
| 13 | WP67004028 | Shutoff Arm (Replaces: 67004028) |
|
Immediately | $ 91.35 | ||||
| 14 | WPD7813010 | Harness, Ice Maker (Replaces: W10153408) |
|
Immediately | $ 73.97 | ||||
| 15 | WP2256087 | Clip, Icemaker (Replaces: 8170931) |
|
$ 93.00 | |||||
| 16 | WPW10289690 | Cover (Replaces: 67004710) |
|
Immediately | $ 8.40 | ||||
| 18 | WP67003753 | Valve, Water Inlet (Replaces: 67003753) |
|
Immediately | $ 109.40 | ||||
| 19 | 8170943 | Screw |
|
- | |||||
| 20 | WPA3223101 | Insert, Tube (Replaces: 4344402) |
|
Immediately | $ 7.82 | ||||
| 21 | W10823511 | Tube, Water (Replaces: 8208151) |
|
Immediately | $ 32.41 | ||||
| 22 | 4343984 | Clip, Wire |
|
- | |||||
| 23 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.00 | |||||
| 100 | D7824706Q | Complete Icemaker Assembly (Replaces: W10122519) |
|
Immediately | $ 167.35 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
