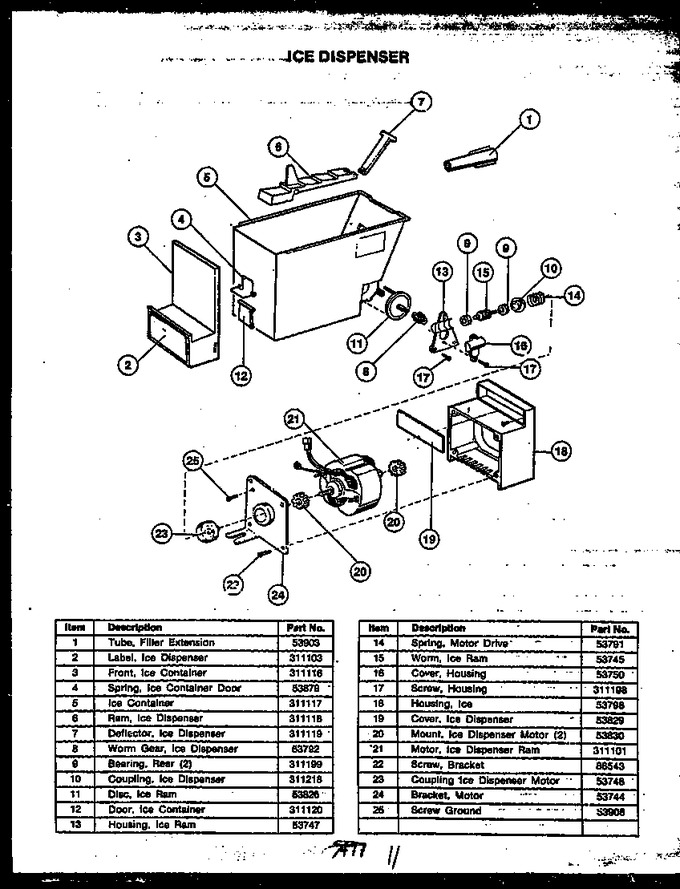

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0053903		Tube, Extension		Appelez-nous	-
2	Y0311103		Label, Ice Dispenser		Appelez-nous	-
3	Y0311116		Container, Front Ice		Appelez-nous	-
4	0053879		Spring, Door		Appelez-nous	-
5	Y0311117		Container, Ice		Appelez-nous	-
6	0311118		Ram, Ice Dispenser		Appelez-nous	-
7	0311119		Deflector, Ice Dispenser		Appelez-nous	-
8	Y0053792		Gear, Ice Ram Drive		Appelez-nous	-
9	Y311199		Bearing, Rear		Appelez-nous	-
10	0311218		Sub 53837, Coupling, Ice Dispe		Appelez-nous	-
11	Y0053826		Disc, Ice Ram Drive		Appelez-nous	-
12	0311120		Door, Ice Container		Appelez-nous	-
13	Y0053747		Housing, Ice Ram Drive		Appelez-nous	-
14	0053791		Spring, Motor Drive		Appelez-nous	-
15	Y0053745		Gear, Ice Ram Drive		Appelez-nous	-
16	Y0053750		Cover, Housing		Appelez-nous	-
17	Y311198		Screw, Housing		Appelez-nous	-
18	Y0053798		Housing, Motor		Appelez-nous	-
19	Y0053829		Cover, Housing		Appelez-nous	-
20	Y0053830		Mount, Ice Dispenser Motor		Appelez-nous	-
21	0311101		Motor, Ice Dispenser Pan		Appelez-nous	-
22	Y0086543		Screw		Appelez-nous	-
23	Y0053748		Coupling, Ice Dispenser Motor		Appelez-nous	-
24	Y0053744		Bracket, Motor		Appelez-nous	-
25	WP67006908		Screw   (Replaces: Y0053908)			Immediately	$ 7.90
