SELECT A DIAGRAM

01 - Cabinet Parts


02 - Control Parts


03 - Fz Door Parts


04 - Ice Dispenser


05 - Ice Door


06 - Ice Maker Parts


07 - Page 1


08 - Ref Door Parts


09 - Unit Parts

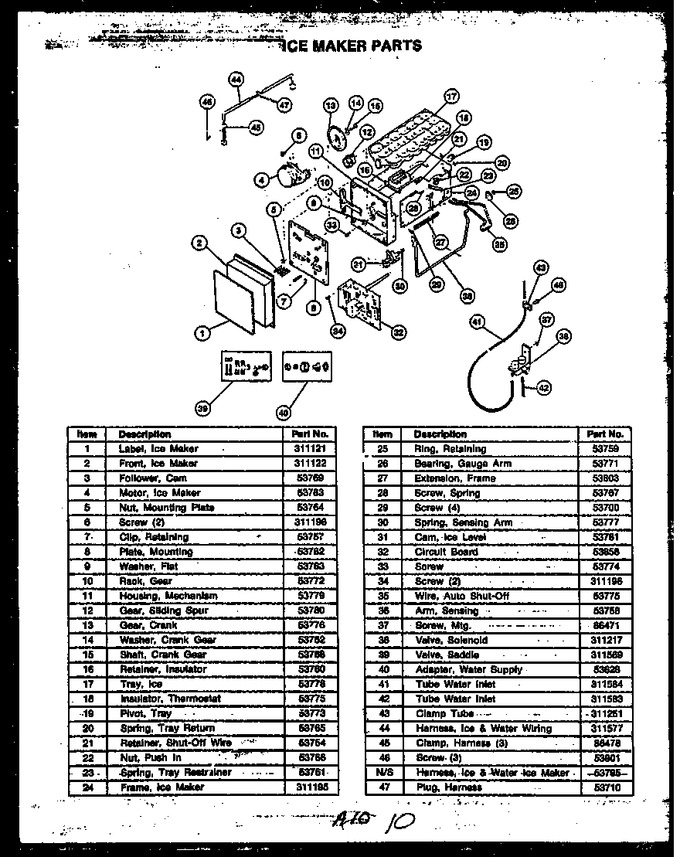

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0311121		Label, Ice Maker		Appelez-nous	-
2	Y0311122		Front, Ice Maker		Appelez-nous	-
3	Y0053769		Follower, Cam		Appelez-nous	-
4	0053783		Use 0313045		Appelez-nous	-
5	Y0053764		Nut, Mounting Plate		Appelez-nous	-
6	Y311196		Screw		Appelez-nous	-
7	Y0053757		Ring, Retaining		Appelez-nous	-
8	53782		Plate-mounting		Appelez-nous	-
9	Y0053763		Washer, Flat		Appelez-nous	-
10	0053772		Rack, Gear		Appelez-nous	-
11	0053779		Housing Mechanism		Appelez-nous	-
12	Y0053780		Gear, Sliding Spur		Appelez-nous	-
13	Y0053776		Gear, Crank		Appelez-nous	-
14	Y0053762		Washer, Crank Gear Shaft		Appelez-nous	-
15	55882		Assy, Switch   (Replaces: 53768)			Immediately	$ 61.79
16	Y0053760		Retainer, Insulator		Appelez-nous	-
17	0053778		Tray, Ice		Appelez-nous	-
18	Y0053775		Insulator, Thermostat		Appelez-nous	-
19	53773		Pivot-tray		Appelez-nous	-
20	Y0053765		Spring, Tray Return		Appelez-nous	-
21	Y0053754		Retainer, Shut-off Wire		Appelez-nous	-
22	Y0053766		Nut, Push-in		Appelez-nous	-
23	Y0053761		Spring, Tray Restrainer		Appelez-nous	-
24	Y311195		Frame, Ice Maker		Appelez-nous	-
25	Y0053759		Ring, Retaining		Appelez-nous	-
26	Y0053771		Bearing, Gauge Arm		Appelez-nous	-
27	Y0053803		Extension, Frame		Appelez-nous	-
28	0053767		Screw, Spring		Appelez-nous	-
29	Y0053700		Screw, Door Closer		Appelez-nous	-
30	53777		Spring-sensing Arm		Appelez-nous	-
31	Y0053781		Cam, Ice Level		Appelez-nous	-
32	0053858		Pc Board, Thermistor		Appelez-nous	-
33	Y0053774		Screw		Appelez-nous	-
34	Y311196		Screw		Appelez-nous	-
35	Y0053775		Insulator, Thermostat		Appelez-nous	-
36	53758		Valve,gas-dual Input		Appelez-nous	-
37	Y0086471		Screw Clamp		Appelez-nous	-
38	Y0311217		Valve, Solenoid		Appelez-nous	-
39	311569		Valve, Saddle		Appelez-nous	-
40	53628		Panel Support Plate		Appelez-nous	-
41	Y311584		Tube Water Inlet		Appelez-nous	-
42	Y311583		Tube Water Inlet		Appelez-nous	-
43	311251		Clamp Tube		Appelez-nous	-
44	311577		Harness, Ice & Water Wiring		Appelez-nous	-
45	Y0086478		Clamp Tube		Appelez-nous	-
46	67006425		Screw, Sm   (Replaces: Y0053901)			Immediately	$ 6.57
47	Y0053710		Plug, Rear Panel & Coil Cover		Appelez-nous	-
NI	Y0053795		Harness, Ice Maker		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
