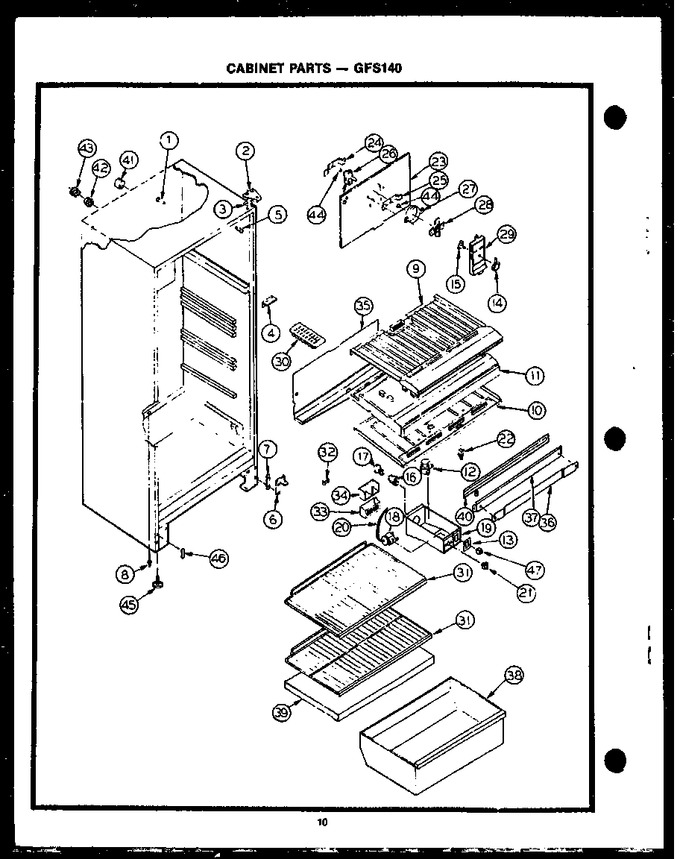

01 - Cabinet Parts
02 - Page 4
03 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0086525 | Support, Coil Cover |
|
- | |||||
| 2 | Y086632F | Plug Lh Hinge Hole, White |
|
- | |||||
| 2 | 86632N | Plug - Hinge Holes, Almond |
|
- | |||||
| 2 | 86632D | Plug - Hinge Holes, Gold |
|
- | |||||
| 2 | 86632V | Plug - Hinge Holes, Avocado |
|
- | |||||
| 2 | 0086529 | Washer, Nylon |
|
- | |||||
| 2 | Y0086551 | Screw, Hinge |
|
- | |||||
| 2 | 86632C | Plug - Hinge Holes, Dark Coppe |
|
- | |||||
| 2 | Y0086485 | Hinge Upper Door |
|
- | |||||
| 3 | Y0086470 | Shim Upper Hinge |
|
- | |||||
| 4 | 86518 | Bracket - Center Hinge |
|
- | |||||
| 4 | Y0086454 | Washer Nylon |
|
- | |||||
| 4 | Y0086554 | Screw, Hinge |
|
- | |||||
| 4 | 86460 | Pin - Center Hinge |
|
- | |||||
| 5 | Y086627F | Trim, Cabinet Corners White |
|
- | |||||
| 5 | Y086627V | Trim, Cabinet Corners Avocado |
|
- | |||||
| 5 | Y086627D | Trim, Cabinet Corners, Gold |
|
- | |||||
| 5 | Y086627C | Trim, Cabinet Corners Dk. Cp. |
|
- | |||||
| 5 | Y086627N | Trim, Cabinet Corners Almond |
|
- | |||||
| 6 | Y0086604 | Plate, Tapping Lower Hinge |
|
- | |||||
| 6 | 0086611 | Hinge, Lower Door |
|
- | |||||
| 6 | 0086612 | Screw, Hinge |
|
- | |||||
| 6 | 0086545 | Pin, Lower Hinge |
|
- | |||||
| 7 | 0086515 | Shim, Lower Hinge |
|
- | |||||
| 8 | Y0086517 | Tube, Drain |
|
- | |||||
| 9 | 86506 | Bottom - Fz |
|
- | |||||
| 10 | DE81-07683A | Top - Ref (Replaces: 86566) |
|
$ 176.77 | |||||
| 10 | 86496 | Screw - |
|
- | |||||
| 11 | 0086520 | Divider, Compartment |
|
- | |||||
| 12 | Y0086455 | Screw |
|
- | |||||
| 12 | Y0086574 | Timer, Defrost |
|
- | |||||
| 13 | Y86595 | Label - Control Box |
|
- | |||||
| 14 | Y0086501 | Knob, Damper Control |
|
- | |||||
| 15 | Y0086491 | Clip |
|
- | |||||
| 15 | 0086490 | Damper, Fan Cover |
|
- | |||||
| 16 | Y0086556 | Socket, Light |
|
- | |||||
| 17 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 17.51 | ||||
| 18 | Y0086493 | Thermostat, Control |
|
- | |||||
| 18 | Y0086456 | Screw |
|
- | |||||
| 19 | Y0086565 | Box, Control |
|
- | |||||
| 19 | Y0086528 | Screw |
|
- | |||||
| 20 | Y0086458 | Tube Plastic |
|
- | |||||
| 21 | 86571 | Knob - Control |
|
- | |||||
| 22 | Y0086495 | Use C3680304 |
|
- | |||||
| 23 | Y0086543 | Screw |
|
- | |||||
| 23 | Y0086522 | Cover, Coil |
|
- | |||||
| 24 | Y0086481 | Bracket, Rear Motor Mounting |
|
- | |||||
| 25 | Y0086482 | Bracket, Front Motor Mounting |
|
- | |||||
| 25 | Y0086528 | Screw |
|
- | |||||
| 26 | 0086563 | Sub 53626, Motor, Blower |
|
- | |||||
| 27 | Y0086553 | Nut |
|
- | |||||
| 27 | 86552 | Ring - Fan Orifice |
|
$ 95.76 | |||||
| 28 | 0086457 | Fan |
|
- | |||||
| 29 | 0086513 | Cover, Fan |
|
- | |||||
| 30 | WP841180A | Sub 86467, Ice Tray (Replaces: Y0086468) |
|
Immediately | $ 43.06 | ||||
| 31 | 0086561 | Shelf, Full |
|
- | |||||
| 32 | Y0086478 | Clamp Tube |
|
- | |||||
| 32 | Y0086528 | Screw |
|
- | |||||
| 33 | 0086483 | Cover, Air Deflector |
|
- | |||||
| 34 | Y0086497 | Deflector, Air |
|
- | |||||
| 35 | Y0086523 | Trough, Drain |
|
- | |||||
| 36 | Y0086546 | Clamp, Mullion Mounting |
|
- | |||||
| 37 | 86631N | Mullion, Almond |
|
- | |||||
| 37 | 86631F | Mullion, White |
|
- | |||||
| 37 | Y0086548 | Washer, Mullion Mounting |
|
- | |||||
| 37 | Y0086549 | Spacer, Mullion Mounting |
|
- | |||||
| 37 | Y086631C | Mullion, Dark Copper |
|
- | |||||
| 37 | Y086631V | Mullion, Avocado |
|
- | |||||
| 37 | Y086631D | Mullion, Gold |
|
- | |||||
| 38 | 86511 | Pan - Crisper |
|
- | |||||
| 39 | 0086510 | Use 0086509 |
|
- | |||||
| 40 | 0086588 | Heater, Mullion |
|
- | |||||
| 41 | Y0086452 | Tube In Ferrule |
|
- | |||||
| 42 | Y0086568 | Ferrule, Outer |
|
- | |||||
| 43 | Y0086567 | Ferrule, Inner |
|
- | |||||
| 44 | Y0086469 | Bushing Motor Mounting |
|
- | |||||
| 45 | Y0086547 | Screw, Leveling |
|
- | |||||
| 45 | Y0086534 | Nut, Anchor |
|
- | |||||
| 46 | Y0086550 | Button Plug |
|
- | |||||
| 47 | Y0086591 | Switch, Slide |
|
- | |||||
| NI | Y0086508 | Button, Plug, Liner Holes |
|
- | |||||
| NI | Y0086461 | Button Plug Water Inlet Hole |
|
- | |||||
| NI | Y0086477 | Button Plug |
|
- | |||||
| NI | Y0086489 | Button Plug |
|
- | |||||
| NI | Y0086504 | Button, Decorative Plug |
|
- | |||||
| NI | Y0086573 | Harness, Wiring |
|
- |
