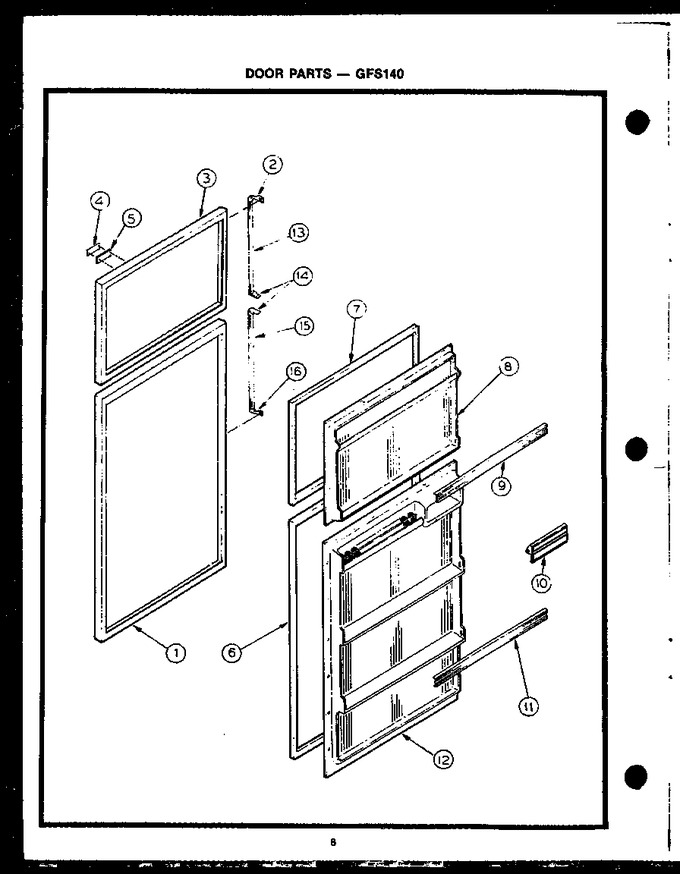

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y086639N		Panel, Refrig Almond		Appelez-nous	-
1	Y086639F		Panel, Refrig White		Appelez-nous	-
1	Y086639D		Panel, Refrig Gold		Appelez-nous	-
1	Y086639C		Panel, Refrig Dk Cp		Appelez-nous	-
1	Y0086464		Ring Seal		Appelez-nous	-
1	Y086639V		Panel, Refrig Avocado		Appelez-nous	-
1	Y0086507		Hinge, Bearing		Appelez-nous	-
2	0086577		Handle, End		Appelez-nous	-
3	Y086638N		Panel, Freezer Almond		Appelez-nous	-
3	Y086638C		Panel, Freezer Dk Cp		Appelez-nous	-
3	Y086638D		Panel, Freezer Gold		Appelez-nous	-
3	Y66507		Bearing - Hinge		Appelez-nous	-
3	Y0086464		Ring Seal		Appelez-nous	-
3	Y086638F		Panel, Freezer White		Appelez-nous	-
3	Y086638V		Panel, Freezer Avocado		Appelez-nous	-
4	Y0086466		Tape		Appelez-nous	-
4	Y0086616		Label, Nameplate		Appelez-nous	-
5	Y0086615		Frame, Nameplate		Appelez-nous	-
6	Y0086605		Gasket, Refrigerator Door		Appelez-nous	-
7	0086606		Gasket, Freezer Door		Appelez-nous	-
8	Y0086530		Interior Panel, Freezer		Appelez-nous	-
8	Y0086488		Screw		Appelez-nous	-
9	0086474		Sub 86473 Rack, Ref. Dr.		Appelez-nous	-
10	0086480		Door, Butter		Appelez-nous	-
11	86473		Rack Ref		Appelez-nous	-
12	Y0086488		Screw		Appelez-nous	-
12	Y0086531		Interior Panel, Refrigerator		Appelez-nous	-
13	Y0086614		Screw, Handles		Appelez-nous	-
13	86575		Grip - Handle Fz				$ 97.41
14	86599		Shelf - Fz		Appelez-nous	-
15	0086576		Sub 86575, Handle		Appelez-nous	-
16	0086578		End, Handle Bottom		Appelez-nous	-
NI	Y086629F		Kit, Door Conversion White		Appelez-nous	-
NI	Y086628N		Button Plug, Almond		Appelez-nous	-
NI	86630V		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	86630C		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	86628D		Button - Plug R.h. Handle Moun		Appelez-nous	-
NI	86628C		Button - Plug R.h. Handle Moun		Appelez-nous	-
NI	86629D		Kit - Door Conversion		Appelez-nous	-
NI	86629V		Kit - Door Conversion		Appelez-nous	-
NI	86629C		Kit - Door Conversion		Appelez-nous	-
NI	Y086628F		Button Plug, White		Appelez-nous	-
NI	86630D		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	86628V		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	Y086630N		Button Plug, Almond		Appelez-nous	-
NI	Y086630F		Button Plug, White		Appelez-nous	-
NI	Y086629N		Kit, Door Conversion Almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
